Engine displacement
125
2
Model
GTV
3
Year
2006
4
Trim
GTV 4T E3
5
Parts Catalog
Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Rear wheel
by
Transmissions
Brakes pipes - Calipers
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
21
21
22
23
24
25
28
30
31
1
Brake caliper Heng Tong
CM068301
Not Available
2
Pinza freno Heng Tong
CM074101
Not Available
3
Rear brake hydraulic piping
648162
£59,16 Unit Price incl. VAT
4
Screw w/ flange M6x30
289731
Not Available
5
Hose clamp
597418
£3,78 Unit Price incl. VAT
6
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
7
Gasket
127927
£1,04 Unit Price incl. VAT
8
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
10
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
11
Hose clamp
564761
£1,43 Unit Price incl. VAT
12
Guard
580160
Not Available
13
Rear brake hydraulic piping.
647975
Not Available
14
Flat washer 15x8,4x1,5
003058
Not Available
15
screw
319532
£1,43 Unit Price incl. VAT
16
Rear Brake pads couple.
647161
£24,91 Unit Price incl. VAT
21
Gasket
127927
£1,04 Unit Price incl. VAT
22
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
23
screw M8x30
015792
Not Available
24
Spring washer
709047
£0,70 Unit Price incl. VAT
25
Brake pads couple Heng Tong
647078
£48,58 Unit Price incl. VAT
28
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
30
Hose clamp
217280
Not Available
31
Spring washer
709047
£0,70 Unit Price incl. VAT

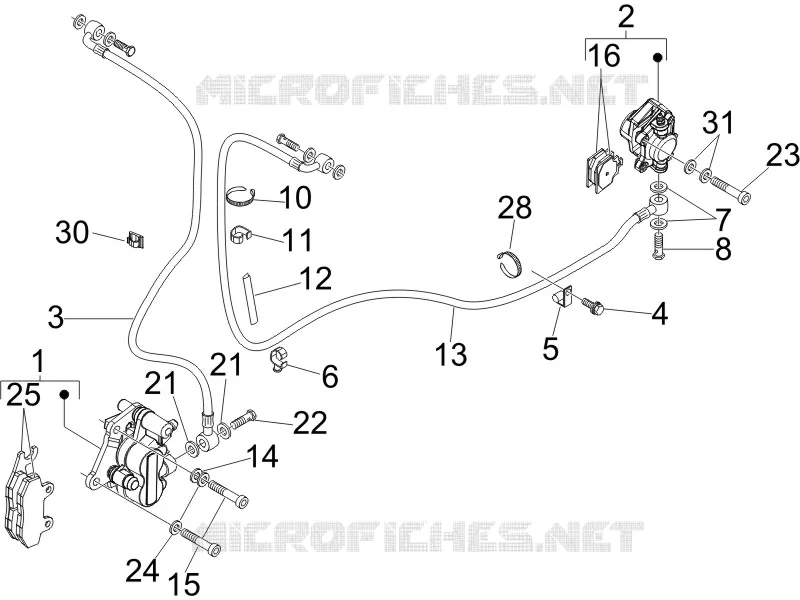

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
