1
Engine displacement
125
2
Model
GTV
3
Year
2007
4
Trim
GTV 4T Navy E3
5
Parts Catalog

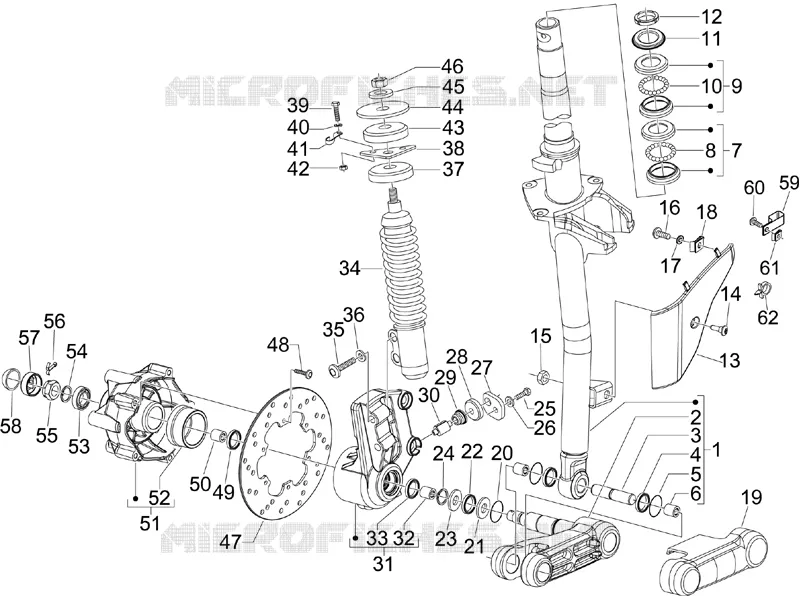

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Swinging arm
by
Rear suspension - Shock absorber/s
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
53
54
55
56
57
58
59
60
61
62
1
Arm complete steering tube
648415
Not Available
2
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
3
Piston pin
177451
£22,88 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Roller cage
198513
£15,49 Unit Price incl. VAT
7
Lower steering bearing
CM061304
Not Available
8
Missing description
000000
Not Available
9
Upper thrust ring
CM061303
Not Available
10
Missing description
000000
Not Available
11
Steering security plate
582787
£1,91 Unit Price incl. VAT
13
Front suspension cover
598615
Not Available
13
Front suspension cover
59861500DE
£82,72 Unit Price incl. VAT
14
Metric screw TBC
259348
£1,04 Unit Price incl. VAT
15
Nut
969224
£0,16 Unit Price incl. VAT
16
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
17
Washer
012528
Not Available
18
Spring plate
CM017410
£0,71 Unit Price incl. VAT
19
Front suspension arm cover
561433
Not Available
20
O-ring
177408
£1,33 Unit Price incl. VAT
21
Washer
177445
£1,62 Unit Price incl. VAT
22
Ring
177521
£1,62 Unit Price incl. VAT
23
Washer
177414
£1,62 Unit Price incl. VAT
24
Circlip
006422
Not Available
25
screw M5x16
031058
Not Available
26
Washer Ø5,3xØ10x0,5
006975
Not Available
27
Plate
269118
Not Available
28
Pad
266841
£1,86 Unit Price incl. VAT
29
Maintenance
564053
Not Available
30
Sprocket wheel odometer drive
648025
£13,07 Unit Price incl. VAT
31
Maintenance
597758
£184,43 Unit Price incl. VAT
32
Drawn cap
177436
Not Available
33
Ring
177494
£4,73 Unit Price incl. VAT
34
Complete front shock absorber
56286R
Not Available
35
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
36
Spring washer
709047
£0,70 Unit Price incl. VAT
37
Pad
174874
£3,66 Unit Price incl. VAT
38
Bracket
273693
£16,19 Unit Price incl. VAT
39
Hex screw M8x22
031119
Not Available
40
Spring washer 13,75x8,15x4,5
016408
Not Available
41
Hose clamp
598134
£7,12 Unit Price incl. VAT
42
Nut M8x6,5
020108
Not Available
43
Pad
174085
£2,87 Unit Price incl. VAT
44
Washer
174088
£1,62 Unit Price incl. VAT
45
Washer
012535
Not Available
46
Nut
021210
Not Available
47
Brake disc
56391R
Not Available
48
Hex socket screw M6x20
271147
Not Available
49
Gasket ring
177443
£3,55 Unit Price incl. VAT
50
Roller cage
177442
£7,33 Unit Price incl. VAT
51
Wheel hub
648031
Not Available
53
Bearing
177610
£20,51 Unit Price incl. VAT
54
Snap ring
006635
Not Available
55
Nut
021114
Not Available
56
Split pin
012789
Not Available
57
Cap
177609
£3,76 Unit Price incl. VAT
58
Cover
092517
Not Available
59
Hose clamp
271477
£1,24 Unit Price incl. VAT
60
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
61
Spring plate
CM017410
£0,71 Unit Price incl. VAT
62
Elastic spring
231590
£0,60 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
