Engine displacement
200
2
Model
GRANTURISMO
3
Year
2005
4
Trim
Granturismo L
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Swinging arm
by
Rear suspension - Shock absorber/s
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
1
Upper thrust ring
56297R
Not Available
1
Upper thrust ring
CM061303
Not Available
2
Missing description
000000
Not Available
3
Lower steering bearing
CM061304
Not Available
3
Lower steering bearing
56298R
Not Available
4
Missing description
000000
Not Available
5
Steering tube ring nut
011109
Not Available
6
Steering security plate
582787
£1,91 Unit Price incl. VAT
7
Steering column tube
6009605
Not Available
8
Suspension arm
56140R5
Not Available
9
Piston pin
177451
£22,88 Unit Price incl. VAT
10
Roller cage
198513
£15,49 Unit Price incl. VAT
11
Gasket
006731
Not Available
12
Gasket ring
119219
£1,58 Unit Price incl. VAT
13
SHOCK ABSORBER
56263R
Not Available
13
Complete front shock absorber
56286R
Not Available
14
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
15
Nut
021210
Not Available
16
Spring washer
709047
£0,70 Unit Price incl. VAT
17
Washer
012535
Not Available
18
Washer
174088
£1,62 Unit Price incl. VAT
19
Pad
174085
£2,87 Unit Price incl. VAT
20
Pad
174874
£3,66 Unit Price incl. VAT
21
Washer Ø5,3xØ10x0,5
006975
Not Available
22
Circlip
006422
Not Available
23
screw M5x16
031058
Not Available
24
O-ring
177408
£1,33 Unit Price incl. VAT
25
Washer
177414
£1,62 Unit Price incl. VAT
26
Washer
177445
£1,62 Unit Price incl. VAT
27
Ring
177521
£1,62 Unit Price incl. VAT
28
Pad
266841
£1,86 Unit Price incl. VAT
29
Pinion
267819
£3,60 Unit Price incl. VAT
30
Plate
269118
Not Available
31
Bracket
273693
£16,19 Unit Price incl. VAT
32
Spring washer 13,75x8,15x4,5
016408
Not Available
33
Nut M8x6,5
020108
Not Available
34
Hex screw M8x22
031119
Not Available
35
Hose clamp
598134
£7,12 Unit Price incl. VAT
36
Maintenance
597758
£184,43 Unit Price incl. VAT
37
Drawn cap
177436
Not Available
38
Ring
177494
£4,73 Unit Price incl. VAT
39
Maintenance
564053
Not Available
40
SUSPENSION COVER (FRONT)
59861500BM
Not Available
40
SUSPENSION COVER (FRONT)
5986150087
Not Available
40
Front suspension cover
59861500ND
Not Available
40
Front suspension cover
598615
Not Available
40
Front suspension cover
59861500DE
£82,72 Unit Price incl. VAT
40
Tyre
59861500D9
Not Available
40
Tyre
59861500VC
Not Available
40
Front suspension cover
59861500F2
£82,72 Unit Price incl. VAT
40
Front suspension arm cover
598615000C
Not Available
40
SUSPENSION COVER (FRONT)
59861500F3
Not Available
40
Tyre
59861500EB
Not Available
41
Metric screw TBC
259348
£1,04 Unit Price incl. VAT
42
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
43
Nut
969224
£0,16 Unit Price incl. VAT
44
Spring plate
CM017410
£0,71 Unit Price incl. VAT
45
Cover
092517
Not Available
46
Brake disc
564573
Not Available
47
Hub
598654
£197,65 Unit Price incl. VAT
48
Elastic spring
231590
£0,60 Unit Price incl. VAT
49
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
50
Hose clamp
271477
£1,24 Unit Price incl. VAT
51
Front suspension arm cover
561433
Not Available
52
Roller cage
177442
£7,33 Unit Price incl. VAT
53
Gasket ring
177443
£3,55 Unit Price incl. VAT
54
Bearing
177610
£20,51 Unit Price incl. VAT
55
Hex socket screw M6x20
271147
Not Available
56
Spring washer 6,4x11x0,5
006966
Not Available
57
Snap ring
006635
Not Available
58
Cap
177609
£3,76 Unit Price incl. VAT
59
Nut
021114
Not Available
60
Split pin
012789
Not Available
61
Spring plate
CM017410
£0,71 Unit Price incl. VAT
62
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT

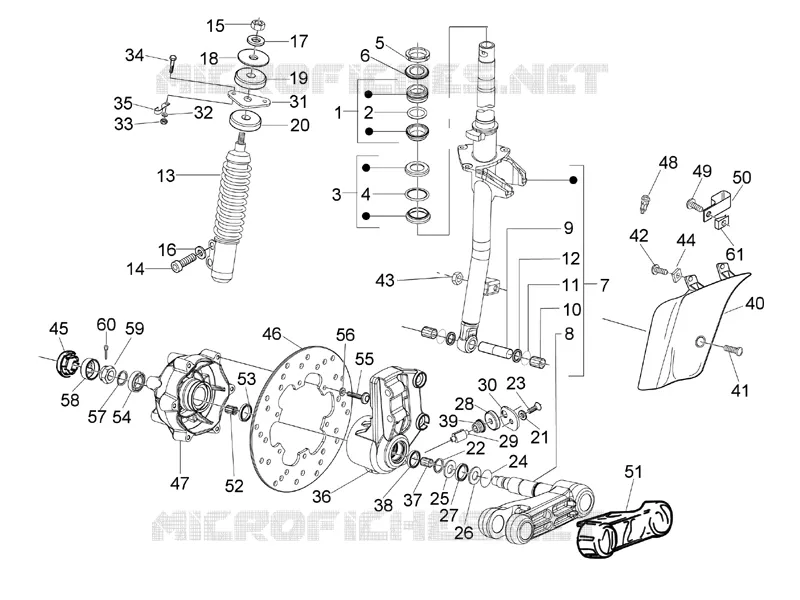

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
