1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2008
4
Trim
Granturismo L
5
Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Front shield
by
Central cover - Footrests

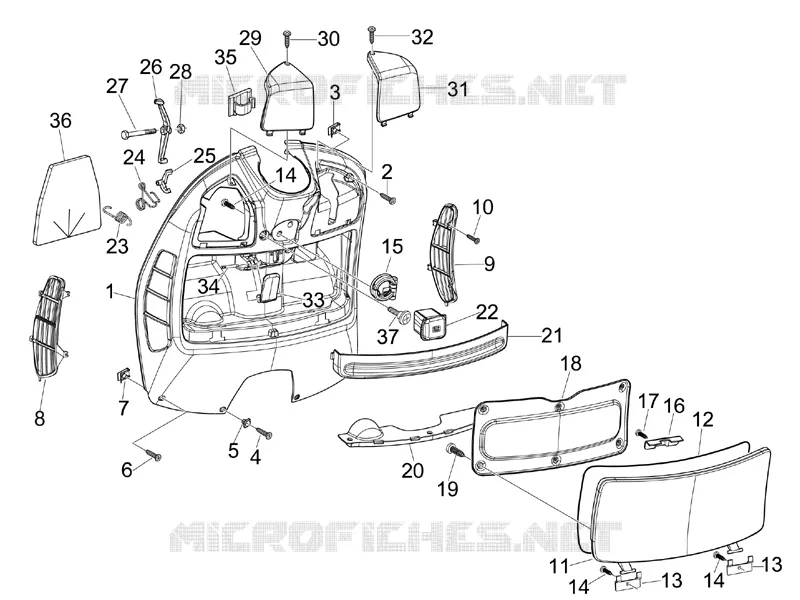

Front glove-box - Knee-guard panel
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
Front glove comp.
57717400ND
Not Available
1
Front glove comp.
57717400F2
Not Available
1
Front glove comp.
57717400DE
Not Available
2
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
3
Plate
CM017408
£0,30 Unit Price incl. VAT
4
Self tapping screw 4,2x25*
014754
Not Available
5
Expansion plug
199190
£0,17 Unit Price incl. VAT
6
Self-tap screw
576189
Not Available
7
Spring plate
CM017410
£0,71 Unit Price incl. VAT
8
Net panel (l)
577856
Not Available
9
Net panel (r)
577857
Not Available
10
Plug screw
268596
£0,62 Unit Price incl. VAT
11
Glove compartment door
57717500ND
Not Available
11
Glove compartment door
57717500DE
£190,69 Unit Price incl. VAT
11
Glove compartment door
57717500F2
Not Available
12
Gasket
CM006307
Not Available
13
Door fixing bracket
257614
£1,72 Unit Price incl. VAT
14
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
15
Bag holder hook
575819
£14,98 Unit Price incl. VAT
16
Square
252420
£3,88 Unit Price incl. VAT
17
Plug screw
268596
£0,62 Unit Price incl. VAT
18
Counter flap
577468
£42,22 Unit Price incl. VAT
19
Self tapping screw
296141
£1,39 Unit Price incl. VAT
20
paratia interna bauletto
623776
£16,98 Unit Price incl. VAT
21
Rim
577447
£12,71 Unit Price incl. VAT
22
Cover
620452
£7,10 Unit Price incl. VAT
23
Spring
577399
£7,40 Unit Price incl. VAT
24
Spring
577005
Not Available
25
Pawl
575607
£3,14 Unit Price incl. VAT
26
Lock lever
577453
£4,28 Unit Price incl. VAT
27
Special screw
299972
£1,14 Unit Price incl. VAT
28
Self locking nut
577620
£0,97 Unit Price incl. VAT
29
Left flap
577395
Not Available
29
Left flap
577395000C
£54,76 Unit Price incl. VAT
30
Self tapping screw M4,2x25
259372
£0,83 Unit Price incl. VAT
31
Right flap
577396000C
£54,76 Unit Price incl. VAT
32
Self tapping screw M4,2x25
259372
£0,83 Unit Price incl. VAT
33
Lever
577861
£5,75 Unit Price incl. VAT
34
Pin
577400
£4,68 Unit Price incl. VAT
35
Spring clamp
577594
£4,72 Unit Price incl. VAT
36
Sound proof panel
620693
£17,82 Unit Price incl. VAT
37
Metric screw TBC
575249
£0,62 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
