1
Engine displacement
250
2
Model
GT
3
Year
2007
4
Trim
GT ie 60°
5
Parts Catalog

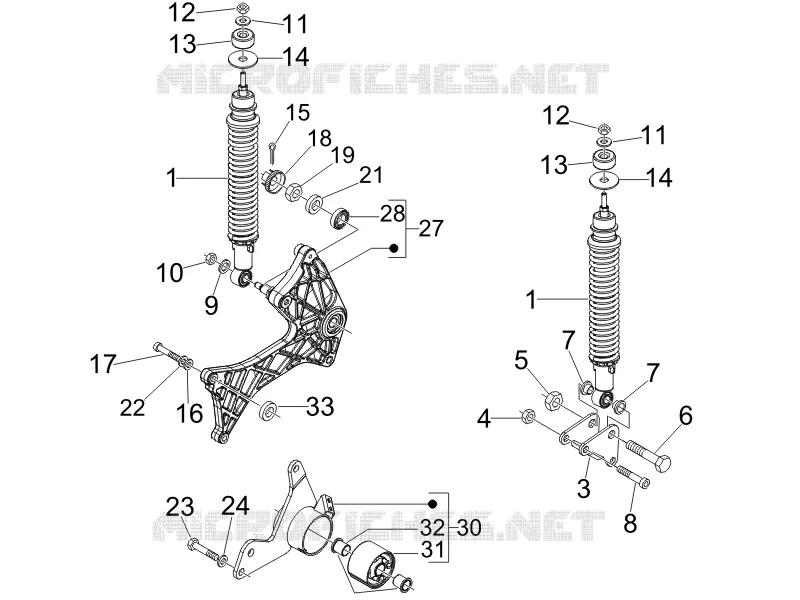

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Front wheel
Rear suspension - Shock absorber/s
1
1
1
3
4
4
5
6
7
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
21
22
23
24
27
28
30
31
32
33
1
Complete rear shock absorber
56234R
Not Available
3
plate
598143
£12,76 Unit Price incl. VAT
4
Nut M8
020008
Not Available
5
Self locking nut M10
232108
Not Available
6
Screw w/ flange M10
268158
£1,87 Unit Price incl. VAT
7
Bush
597149
£4,04 Unit Price incl. VAT
8
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
9
Washer
016627
Not Available
10
Self locking nut M10
232108
Not Available
11
Spring washer 13,75x8,15x4,5
016408
Not Available
12
Nut M8
021108
Not Available
13
Upper buffer
178150
£2,69 Unit Price incl. VAT
14
Flat washer
267038
£1,02 Unit Price incl. VAT
15
Split pin
012789
Not Available
16
Washer
013776
Not Available
17
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
18
Nut hold cap
194423
Not Available
19
Nut M16x13
563728
£2,48 Unit Price incl. VAT
21
Spacer
597528
£7,33 Unit Price incl. VAT
22
Spring washer
709047
£0,70 Unit Price incl. VAT
23
Bolt
031153
Not Available
24
Washer
709646
Not Available
27
Right arm
599593
Not Available
28
Ball bearing
82545R
£22,90 Unit Price incl. VAT
30
Silentblock support bracket
601815
£127,24 Unit Price incl. VAT
31
Silent-block
272750
£44,05 Unit Price incl. VAT
32
Bush
273460
£0,98 Unit Price incl. VAT
33
Wheel spacer
848039
£25,44 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
