Engine displacement
125
2
Model
GTS
3
Year
2016
4
Trim
GTS 4T E4 ABS
5
Parts Catalog
Head unit - Valve
6
Parts Diagram
Parts Catalog
Front wheel
by
Main cable harness
Head unit - Valve
1
2
2
3
4
5
6
6
7
7
8
8
9
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
1
Cylinder head assembly
1A003463
£406,31 Unit Price incl. VAT
2
Stud bolt M7
435629
£1,87 Unit Price incl. VAT
3
Big end-silencer gasket
1A001528
£4,26 Unit Price incl. VAT
4
Exaust valve
1A000857
£74,62 Unit Price incl. VAT
5
Valve, in
1A001435
£40,31 Unit Price incl. VAT
6
Cup
843307
£9,58 Unit Price incl. VAT
7
Valve spring
1A001651
£5,93 Unit Price incl. VAT
8
Half-cone
B015484
£1,10 Unit Price incl. VAT
9
Upper cap
B013833
£2,84 Unit Price incl. VAT
10
Plug M6x10
842360
£2,20 Unit Price incl. VAT
11
screw M6x112,5
B016807
£1,90 Unit Price incl. VAT
12
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
13
Nut M8x1,25
411296
£1,97 Unit Price incl. VAT
14
Locating dowel
435571
£0,72 Unit Price incl. VAT
15
Cylinder head gasket
1A001006
Not Available
16
Thermostat cover
1A002603
£58,50 Unit Price incl. VAT
17
Thermostat
82831R5
£69,52 Unit Price incl. VAT
18
Torx Screw M5x20
1A004456
£1,82 Unit Price incl. VAT
19
Bleed screw
430045
£1,60 Unit Price incl. VAT
20
Bleed valve cap
063435
Not Available
21
Temperature gauge
640485
Not Available
22
Calibrated nozzle
1A001364
£4,34 Unit Price incl. VAT

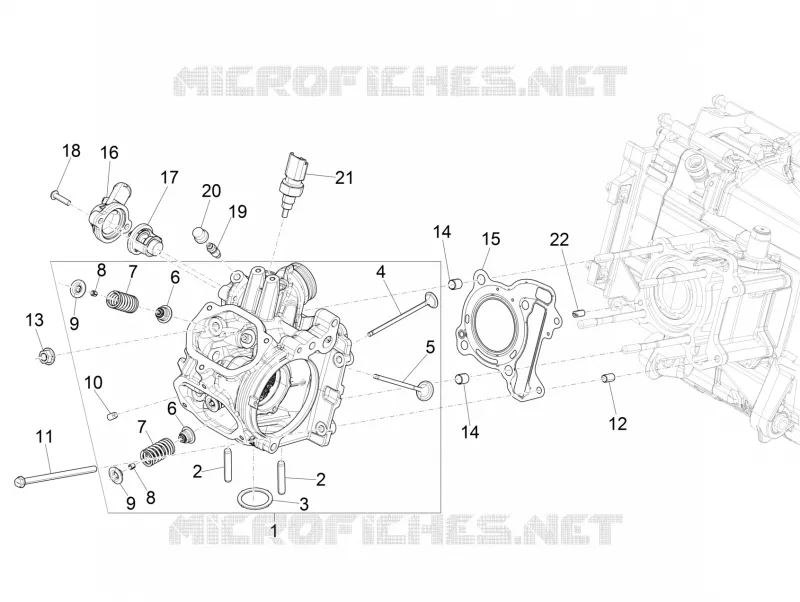

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
