Engine displacement
125
2
Model
GTS
3
Year
2017
4
Trim
GTS 4T E4 ABS
5
Parts Catalog
Air filter
6
Parts Diagram
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
by
Helmet huosing - Undersaddle
Air filter
20
21
22
23
19
12
11
10
9
8
8
8
8
7
1
2
3
4
4
5
6
14
15
16
17
18
13
24
1
Complete air cleaner box
1A007165
Not Available
1
Complete air cleaner box
1A008896
£190,13 Unit Price incl. VAT
2
Air filter
1A007327
£9,42 Unit Price incl. VAT
3
Gasket
1A006644
£16,51 Unit Price incl. VAT
4
Self tapping screw L=20 mm
267958
£0,76 Unit Price incl. VAT
5
Air filter closing knob
1A006715
£11,62 Unit Price incl. VAT
6
Air cleaner sleeve
1A006703
£38,93 Unit Price incl. VAT
7
Hose clamp
614188
£4,90 Unit Price incl. VAT
8
Knurled bushing
1A006247
£1,24 Unit Price incl. VAT
9
Intake pipe
1A003972
£2,63 Unit Price incl. VAT
10
Hose clamp
CM002908
£1,27 Unit Price incl. VAT
11
Drain pipe
1A008866
£5,69 Unit Price incl. VAT
12
Hose clamp
CM002910
£0,98 Unit Price incl. VAT
13
Hose clamp
573918
£1,00 Unit Price incl. VAT
14
Screw w/ flange
874552
£1,27 Unit Price incl. VAT
15
Notched washer 6,6x11x0
012533
Not Available
16
Flat washer 6,4x12x1
003056
Not Available
17
Spring plate M6
254485
£1,64 Unit Price incl. VAT
18
Hose clamp
709532
Not Available
19
Hose clamp
CM001913
£1,69 Unit Price incl. VAT
20
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
21
Hose clamp
CM002910
£0,98 Unit Price incl. VAT
22
Cap
827831
£4,75 Unit Price incl. VAT
23
Breather pipe
1A009072
£5,50 Unit Price incl. VAT
24
Hose clamp
CM002908
£1,27 Unit Price incl. VAT

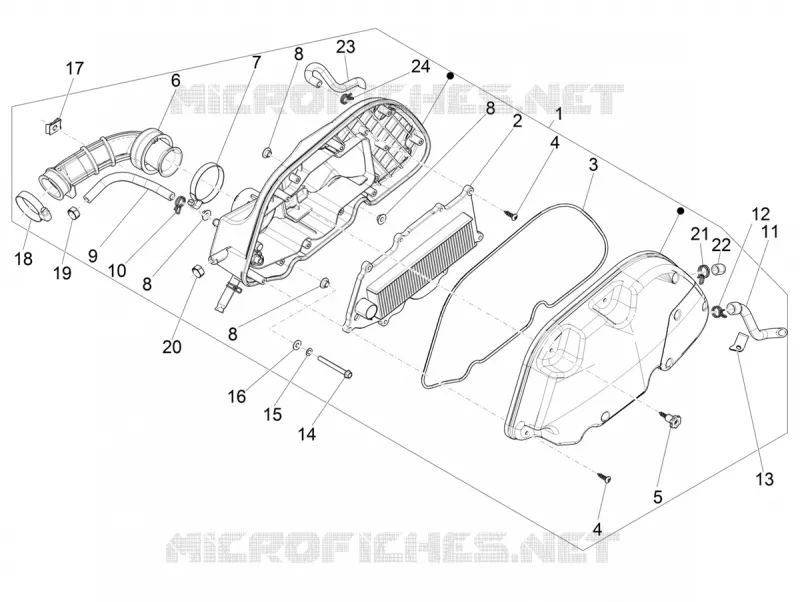

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
