Engine displacement
125
2
Model
GTS
3
Year
2017
4
Trim
GTS 4T E4 ABS
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Throttle body - Injector - Union pipe
by
Meter combination - Cruscotto
Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
1
Steering tube complete with arm
1C0025285
£443,76 Unit Price incl. VAT
2
Suspension arm with I.P.
6514825
Not Available
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Lower steering bearing
650075
Not Available
8
Upper thrust ring
650693
Not Available
9
Steering security plate
582787
£1,91 Unit Price incl. VAT
10
Steering tube ring nut
0111094
Not Available
11
Collar
582828
£2,11 Unit Price incl. VAT
12
Front suspension cover
1C001153
£14,36 Unit Price incl. VAT
13
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
14
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
15
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
16
Washer
012528
Not Available
17
Spring plate
CM017410
£0,71 Unit Price incl. VAT
18
Complete front shock absorber
56452R
Not Available
18
Complete front shock absorber
56286R
Not Available
19
Pad
174874
£3,66 Unit Price incl. VAT
20
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
21
Elastic spring
231590
£0,60 Unit Price incl. VAT
22
Pad
174085
£2,87 Unit Price incl. VAT
23
Washer
174088
£1,62 Unit Price incl. VAT
24
Washer
012535
Not Available
25
Nut
021210
Not Available
26
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
27
Spring washer 13,75x8,15x4,5
016408
Not Available
28
O-ring
177408
£1,33 Unit Price incl. VAT
29
Washer
177445
£1,62 Unit Price incl. VAT
30
Pin and shock absorber support
1C0025295
£290,39 Unit Price incl. VAT
31
Gasket ring
1C001969
£6,17 Unit Price incl. VAT
32
Drawn cap
177436
Not Available
33
Ring
177494
£4,73 Unit Price incl. VAT
34
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
35
Spring washer
709047
£0,70 Unit Price incl. VAT
36
Washer
177414
£1,62 Unit Price incl. VAT
37
Circlip
006422
Not Available
38
Gasket ring
177443
£3,55 Unit Price incl. VAT
39
Roller cage
177442
£7,33 Unit Price incl. VAT
40
Brake disc
56484R
£78,92 Unit Price incl. VAT
41
Front ABS tone wheel
669115
£10,22 Unit Price incl. VAT
42
Cylindrical screw
1C002563
Not Available
43
Rear wheel hub with U.P.
650907
£131,96 Unit Price incl. VAT
44
Bearing
177610
£20,51 Unit Price incl. VAT
45
Snap ring
006635
Not Available
46
Nut
021114
Not Available
47
Cap
177609
£3,76 Unit Price incl. VAT
48
Split pin
012789
Not Available
49
Cover
1C000523
£9,90 Unit Price incl. VAT
50
Front suspension arm cover
561433
Not Available
51
ABS sensor
1D0001275
Not Available
52
Torx Screw
880285
£1,24 Unit Price incl. VAT
53
Washer Ø5,3xØ10x0,5
006975
Not Available
54
Flat washer
669282
£2,36 Unit Price incl. VAT
55
Cover
601026
£7,00 Unit Price incl. VAT

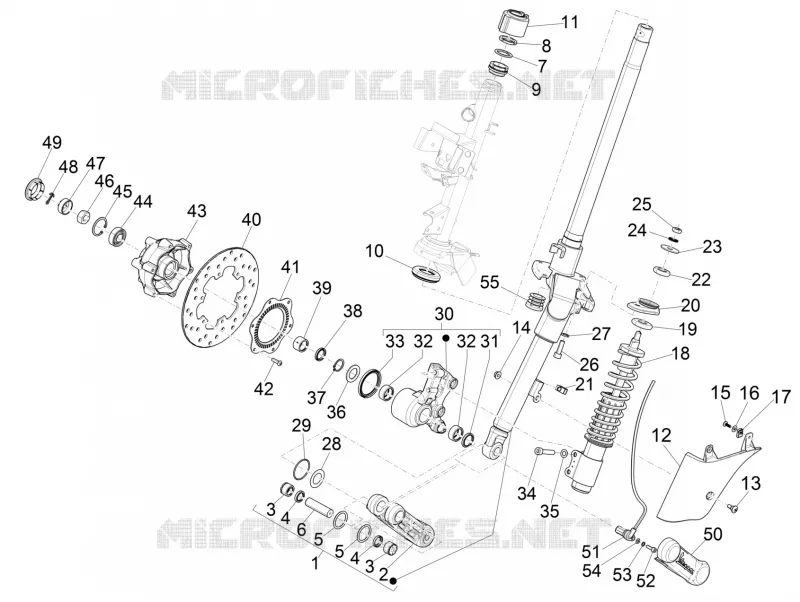

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
