1
Engine displacement
125
2
Model
GTS
3
Year
2016
4
Trim
GTS 4T ie Super E3
5
Parts Catalog

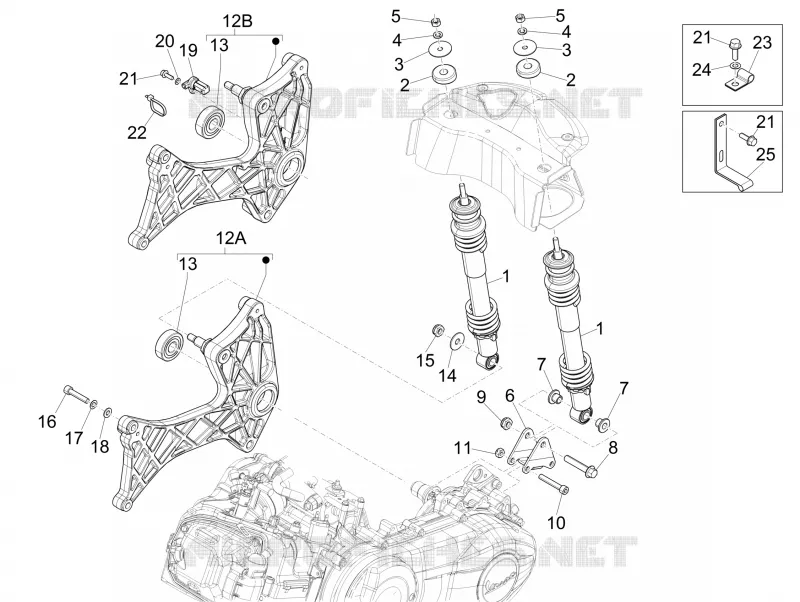

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Swinging arm
by
Cooling system
Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12A
12B
13
13
14
15
16
17
18
19
20
21
21
21
22
23
24
25
1
Complete rear shock absorber
58503R
Not Available
2
Upper buffer
178150
£2,69 Unit Price incl. VAT
3
Flat washer
267038
£1,02 Unit Price incl. VAT
4
Spring washer 13,75x8,15x4,5
016408
Not Available
5
Nut M8
021108
Not Available
6
plate
598143
£12,76 Unit Price incl. VAT
7
Bush
597149
£4,04 Unit Price incl. VAT
8
Screw w/ flange M10
268158
£1,87 Unit Price incl. VAT
9
Self locking nut M10
002440
Not Available
10
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
11
Nut M8
020008
Not Available
12A
Right arm
599593
Not Available
12B
Right arm
1A001903
Not Available
13
Ball bearing
82545R
£22,90 Unit Price incl. VAT
14
Washer
013962
Not Available
15
Self locking nut M10
002440
Not Available
16
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
17
Spring washer
709047
£0,70 Unit Price incl. VAT
18
Flat washer 15x8,4x1,5
003058
Not Available
19
ABS sensor
1D0001275
Not Available
20
Flat washer
669282
£2,36 Unit Price incl. VAT
21
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
22
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
23
Hose clamp
643413
£1,94 Unit Price incl. VAT
24
Washer Ø5,3xØ10x0,5
006975
Not Available
25
Hose clamp
9004461229000
£0,90 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
