1
Engine displacement
250
2
Model
GTS
3
Year
2007
4
Trim
GTS
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Silencer

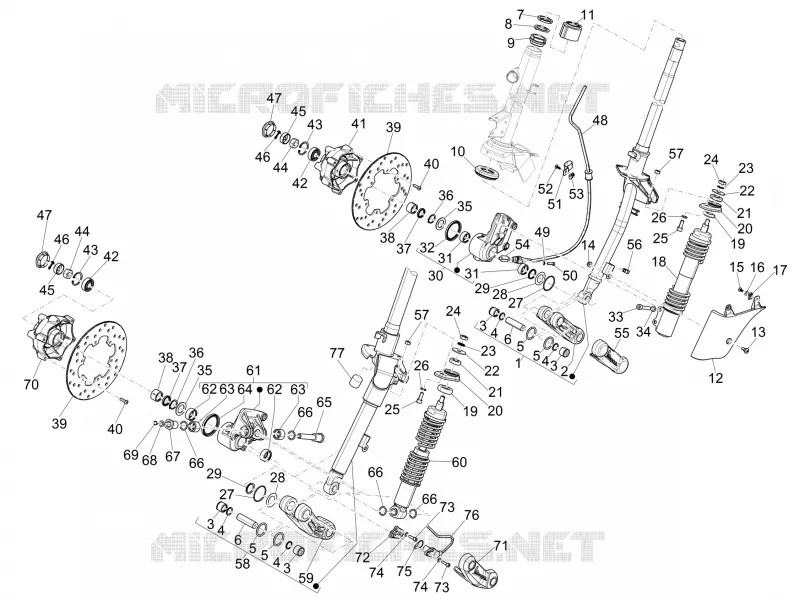

Fork/steering tube - Steering bearing unit
1
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
21
21
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
31
31
32
33
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
46
46
47
48
49
50
51
52
53
54
55
56
57
57
58
59
60
61
62
62
63
63
64
65
66
66
66
66
67
68
69
70
71
72
73
73
74
74
75
76
77
1
Arm complete steering tube
1U0000765
Not Available
2
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Lower steering bearing
6500754
Not Available
8
Upper thrust ring
6506934
Not Available
9
Steering security plate
582787
£1,91 Unit Price incl. VAT
10
Steering tube ring nut
0111094
Not Available
11
Collar
582828
£2,11 Unit Price incl. VAT
12
Front suspension arm cover
598615000C
Not Available
12
Front suspension cover
649876
Not Available
13
Metric screw TBC
259348
£1,04 Unit Price incl. VAT
14
Nut
969224
£0,16 Unit Price incl. VAT
15
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
16
Washer
012528
Not Available
17
Spring plate
CM017410
£0,71 Unit Price incl. VAT
18
Complete front shock absorber
56286R
Not Available
19
Pad
174874
£3,66 Unit Price incl. VAT
20
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
20
Bracket
273693
£16,19 Unit Price incl. VAT
21
Pad
174085
£2,87 Unit Price incl. VAT
22
Washer
174088
£1,62 Unit Price incl. VAT
23
Washer
012535
Not Available
24
Nut
021210
Not Available
25
screw
597150
£1,51 Unit Price incl. VAT
25
screw M8x20
599009
£1,51 Unit Price incl. VAT
26
Spring washer 13,75x8,15x4,5
016408
Not Available
27
O-ring
177408
£1,33 Unit Price incl. VAT
28
Washer
177445
£1,62 Unit Price incl. VAT
29
Ring
177521
£1,62 Unit Price incl. VAT
30
Maintenance
597758
£184,43 Unit Price incl. VAT
31
Drawn cap
177436
Not Available
32
Ring
177494
£4,73 Unit Price incl. VAT
33
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
34
Spring washer
709047
£0,70 Unit Price incl. VAT
35
Washer
177414
£1,62 Unit Price incl. VAT
36
Circlip
006422
Not Available
37
Gasket ring
177443
£3,55 Unit Price incl. VAT
38
Roller cage
177442
£7,33 Unit Price incl. VAT
39
Brake disc
56484R
£78,92 Unit Price incl. VAT
40
Hex socket screw M6x20
667152
£1,27 Unit Price incl. VAT
41
Hub
598654
£197,65 Unit Price incl. VAT
42
Bearing
177610
£20,51 Unit Price incl. VAT
43
Snap ring
006635
Not Available
44
Nut
021114
Not Available
45
Cap
177609
£3,76 Unit Price incl. VAT
46
Split pin
012789
Not Available
47
Cover
092517
Not Available
48
Speedometer transmission
650849
£21,56 Unit Price incl. VAT
49
Washer Ø5,3xØ10x0,5
006975
Not Available
50
screw M5x16
031058
Not Available
51
Hose clamp
271477
£1,24 Unit Price incl. VAT
52
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
53
Spring plate
CM017410
£0,71 Unit Price incl. VAT
54
Pinion
267819
£3,60 Unit Price incl. VAT
55
Front suspension arm cover
561433
Not Available
56
Elastic spring
231590
£0,60 Unit Price incl. VAT
57
Nut M8x6,5
020108
Not Available
58
Steering tube complete with arm
1C0007475
£548,02 Unit Price incl. VAT
59
Left suspension arm
6691315
£105,14 Unit Price incl. VAT
60
Front shock absorber cpl.
1C000508
Not Available
61
Pin and shock absorber support
1C0005065
£219,74 Unit Price incl. VAT
62
Drawn cap
177436
Not Available
63
Roller cage
1C000167
£14,81 Unit Price incl. VAT
64
Ring
177494
£4,73 Unit Price incl. VAT
65
Threaded pin
1C000500
£28,90 Unit Price incl. VAT
66
Gasket ring
482302
£0,97 Unit Price incl. VAT
67
Threaded bush
1C000499
£25,24 Unit Price incl. VAT
68
Washer
847183
£1,27 Unit Price incl. VAT
69
Safety washer
006408
Not Available
70
Rear wheel hub with U.P.
650907
£131,96 Unit Price incl. VAT
71
Swinging arm cover
1C000835
£22,55 Unit Price incl. VAT
72
Support bracket sensor
1C000620
£7,81 Unit Price incl. VAT
73
Hex socket screw M6x20
709674
£1,27 Unit Price incl. VAT
74
Spring washer 12x6,4x0,5
006976
Not Available
75
Flat washer
668780
£4,99 Unit Price incl. VAT
76
Speed sensor
1D0007655
£116,89 Unit Price incl. VAT
77
Cover
601026
£7,00 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
