1
Engine displacement
250
2
Model
GTS
3
Year
2007
4
Trim
GTS ABS
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Front wheel
by
Fuel tank
Handlebars - Master cil.
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
1
handlebars
623536
Not Available
2
Throttle control sleeve assembly
CM060965
Not Available
3
Screw with bushing
123394
£2,69 Unit Price incl. VAT
4
Grip, l.h.
271452
£11,24 Unit Price incl. VAT
5
Grip, r.h.
271453
£7,04 Unit Price incl. VAT
6
Ring 38,3x27x1,2
562923
£0,48 Unit Price incl. VAT
7
Gas lever transmission
601288
Not Available
8
screw M6x55
271434
Not Available
9
Anti vib.weight trailing
582034
Not Available
10
Flat elastic washer with internal toothing 17x10,3x2
012543
Not Available
11
Nut M10
015330
Not Available
12
Flat washer
178790
£1,64 Unit Price incl. VAT
13
Hex socket screw
655554
£1,97 Unit Price incl. VAT
13
screw
223605
Not Available
14
Collar
582828
£2,11 Unit Price incl. VAT
15
Master cil. (black lever)
CM063701
Not Available
16
Fr. br. lever GRIMECA
646803
£55,20 Unit Price incl. VAT
17
Front master cilinder
CM063607
Not Available
18
Fr. br. lever GRIMECA
646803
£55,20 Unit Price incl. VAT

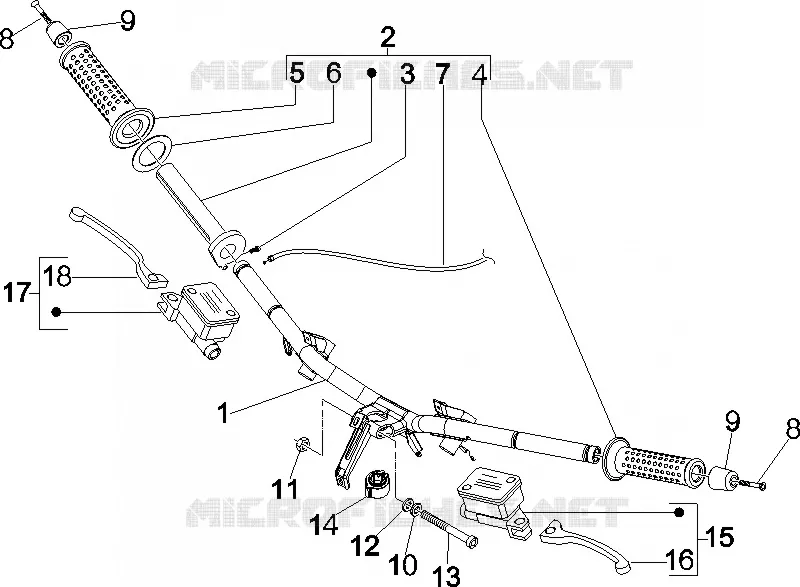

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
