1
Engine displacement
300
2
Model
GTS
3
Year
2016
4
Trim
GTS ie ABS
5
Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Cylinder-piston-wrist pin unit
Front glove-box - Knee-guard panel
1
2
2
3
3
3
3
4
5
6
7
8
9
10
10
11
12
13
13
14
15
16
17
18
19
20
20
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
39
40
1
Front glove comp.
1B000992000DE
Not Available
1
BAULETTO ANTERIORE
1B003348000Q7
£555,16 Unit Price incl. VAT
1
Front glove comp.
1B003348000MD
Not Available
1
Front glove comp.
1B003348000YR5
Not Available
1
Front glove comp.
1B000992
Not Available
1
Front glove comp.
1B003348000XN2
Not Available
1
Front glove comp.
1B000992000HA
Not Available
1
Front glove comp.
1B000992000XN2
Not Available
1
BAULETTO ANTERIORE
1B003348
£559,09 Unit Price incl. VAT
1
Front glove comp.
1B003348000T8
Not Available
1
Front glove comp.
1B003348000HA
Not Available
1
Front glove comp.
1B000992000EU
Not Available
1
Front glove comp.
1B000992000T6
Not Available
2
VITE AUTOFILET.CON IMPRONTA TORX
CM178604
£1,24 Unit Price incl. VAT
3
PIASTRINA EL.6,5X11X0
CM017408
£0,30 Unit Price incl. VAT
4
VITE AUTOFILET.CON IMPRONTA TORX
CM178601
£1,24 Unit Price incl. VAT
5
TASSELLO
199190
£0,17 Unit Price incl. VAT
6
VITE AUTOFILETTANTE (IMPRONTA TORX)
CM178610
£1,24 Unit Price incl. VAT
7
PIASTRINA ELASTICA
CM017410
£0,71 Unit Price incl. VAT
8
Net panel (l)
577856000C
Not Available
9
GRIGLIA DX BAULETTO
577857000C
£24,24 Unit Price incl. VAT
10
VITE AUTOFILETTANTE PER MATERIE PLAST.
268596
£0,62 Unit Price incl. VAT
11
PORTELLO DESTRO
577396000C
£54,76 Unit Price incl. VAT
12
PORTELLO SINISTRO
577395000C
£54,76 Unit Price incl. VAT
13
VITE AUTOFILETTANTE (IMPRONTA TORX)
CM178607
£1,24 Unit Price incl. VAT
14
GANCIO PORTABORSA COMPLETO
575819
£14,98 Unit Price incl. VAT
15
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
£0,79 Unit Price incl. VAT
16
VITE METRICA CON CODOLO
575249
£0,62 Unit Price incl. VAT
17
RONDELLA
641548
£2,30 Unit Price incl. VAT
18
PORTELLO BAULETTO
57717500Q7
£190,69 Unit Price incl. VAT
18
PORTELLO BAULETTO
577175
£179,41 Unit Price incl. VAT
18
Glove compartment door
57717500MD
Not Available
18
PORTELLO BAULETTO
57717500HA
£240,00 Unit Price incl. VAT
18
PORTELLO BAULETTO
57717500YR5
£240,00 Unit Price incl. VAT
18
PORTELLO BAULETTO GTS BLEU 222/A
57717500DE
£190,69 Unit Price incl. VAT
18
PORTELLO BAULETTO
57717500XN2
£240,00 Unit Price incl. VAT
18
PORTELLO BAULETTO
57717500T8
£190,69 Unit Price incl. VAT
19
SQUADRETTA
252420
£3,88 Unit Price incl. VAT
20
VITE AUTOFILETTANTE PER MATERIE PLAST.
268596
£0,62 Unit Price incl. VAT
21
CAGNOLETTO
575607
£3,14 Unit Price incl. VAT
22
Spring
577005
Not Available
23
SQUADRETTA FISSAGGIO PORTELLO
257614
£1,72 Unit Price incl. VAT
24
CONTROSPORTELLO
577468
£42,22 Unit Price incl. VAT
25
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
£0,60 Unit Price incl. VAT
26
LEVETTA
577861
£5,75 Unit Price incl. VAT
27
MOLLA
577399
£7,40 Unit Price incl. VAT
28
PERNO
577400
£4,68 Unit Price incl. VAT
29
CORNICE INTERNA BAULETTO
577447
£12,71 Unit Price incl. VAT
30
PARATIA INTERNA BAULETTO
623776
£16,98 Unit Price incl. VAT
31
MANCETTA ADESIVA
577594
£4,72 Unit Price incl. VAT
32
TAPPO PER TROUSSE ATTREZZI
620452
£7,10 Unit Price incl. VAT
33
VITE SPECIALE M4
299972
£1,14 Unit Price incl. VAT
34
LEVETTA PER SERRATURA
577453
£4,28 Unit Price incl. VAT
35
DADO AUTOFRENANTE M4
577620
£0,97 Unit Price incl. VAT
36
GUARNIZIONE PER PORTELLO
CM006311
£13,00 Unit Price incl. VAT
37
PANNELLO INSONORIZZANTE
620693
£17,82 Unit Price incl. VAT
38
Top box cover
1B000983
Not Available
38
COPERCHIO
1B001752
£11,04 Unit Price incl. VAT
39
VITE AUTOFILETTANTE (IMPRONTA TORX)
CM178603
£1,87 Unit Price incl. VAT
40
PIASTRINA ELASTICA
CM017410
£0,71 Unit Price incl. VAT

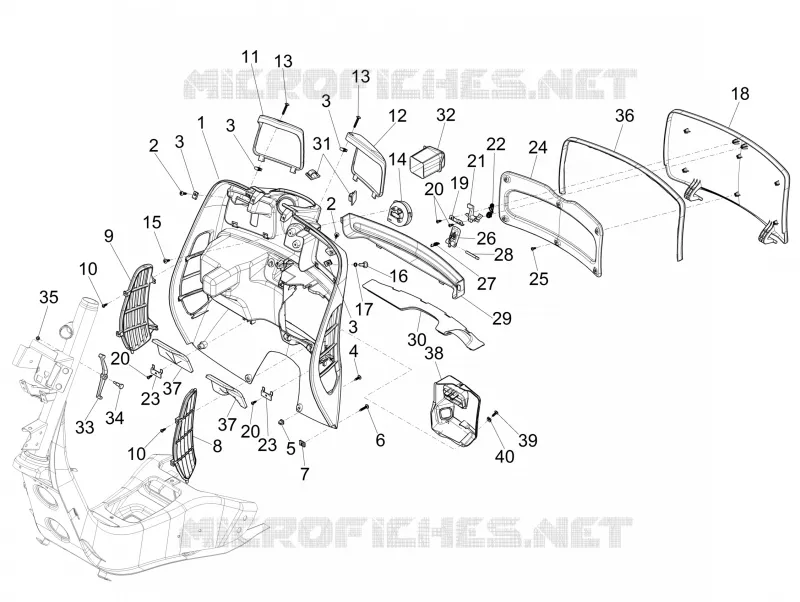

Find the detailed Front glove-box - Knee-guard panel GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
