1
Engine displacement
300
2
Model
GTS
3
Year
2016
4
Trim
GTS ie ABS
5
Parts Catalog
Cylinder head cover
6
Parts Diagram
Parts Catalog
Driving mirror/s
by
Front headlamps - Turn signal lamps
Cylinder head cover
1
2
3
4
5
6
7
8
9
10
11
1
COPERCHIO TESTA
829534
£87,38 Unit Price incl. VAT
2
VITE SPECIALE
872635
£1,97 Unit Price incl. VAT
3
TAMPONE SMORZATORE
830249
£0,76 Unit Price incl. VAT
4
GUARNIZIONE COPERCHIO TESTA
829536
£13,79 Unit Price incl. VAT
5
Oil breather valve
828421
Not Available
6
VITE AUTOMASCHIANTE TRILOBATA M5X20
877136
£0,16 Unit Price incl. VAT
7
GUARNIZIONE (O-RING)
1A003985
£4,39 Unit Price incl. VAT
8
CANDELA ACC.CR8EKB
639687
£17,56 Unit Price incl. VAT
9
TUBETTO SFIATO OLIO
844094
£15,66 Unit Price incl. VAT
10
FASCETTA STRINGITUBO
CM001904
£1,51 Unit Price incl. VAT
11
FASCETTA STRINGITUBO
CM001904
£1,51 Unit Price incl. VAT

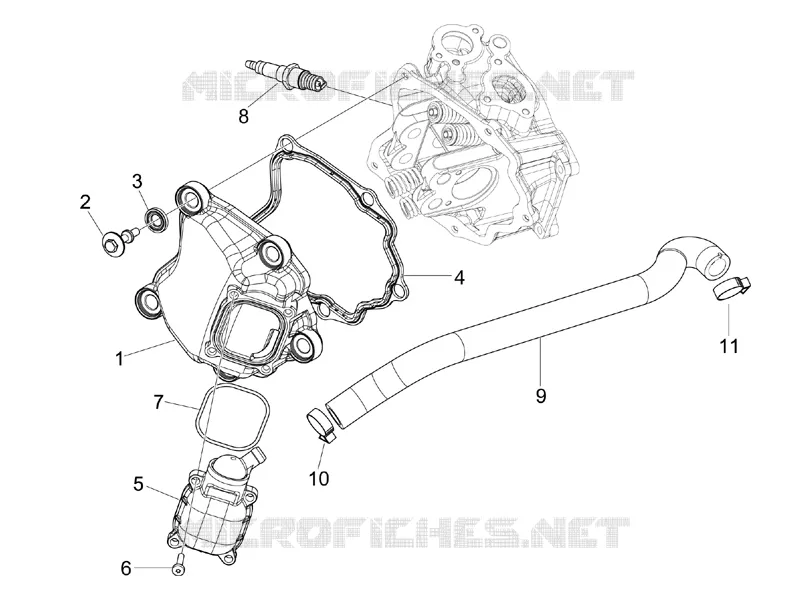

Find the detailed Cylinder head cover GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
