1
Crankcase assembly cat1
1A0009740A
Not Available
1
Crankcase assembly cat2
1A0009740B
Not Available
2
PRIGIONIERO TESTA/CILINDRO
1A003628R
£9,55 Unit Price incl. VAT
3
SPINA RIFERIMENTO (D.9,5 H=15)
B015956
£0,74 Unit Price incl. VAT
4
CUSCINETTO RADIALE 15.42.13
83018R
£10,26 Unit Price incl. VAT
5
GRANO DI RIFERIMENTO
B015957
£1,00 Unit Price incl. VAT
6
ANELLO ELASTICO (12x26,9x1,2)
B015959
£1,27 Unit Price incl. VAT
7
Radial ball bearing 20x47x14
833701
Not Available
8
ANELLO DI TENUTA 20-32-7
82878R
£12,89 Unit Price incl. VAT
9
SPINA RIFERIMENTO (D.9,5 H=15)
B015956
£0,74 Unit Price incl. VAT
10
UGELLO CALIBRATO
484034
£7,96 Unit Price incl. VAT
11
UGELLO CALIBRATO PER CARTER D.1,1
844582
£7,64 Unit Price incl. VAT
12
SILENTBLOC ATT.MOTORE
486081
£9,73 Unit Price incl. VAT
13
GUARNIZIONE SEMICARTER
875111
£16,03 Unit Price incl. VAT
14
Screw M5x10
018575
Not Available
15
VALVOLA REGOL.PRESSIONE OLIO
829661
£11,54 Unit Price incl. VAT
16
MOLLA VALVOLA PRESS.OLIO
485655
£1,13 Unit Price incl. VAT
17
PARATIA OLIO
483767
£10,06 Unit Price incl. VAT
18
VITE A TESTA ESAGONALE FLANGIATA
830061
£2,48 Unit Price incl. VAT
19
GRANO DI RIFERIMENTO (Ø7,5, H=12)
277916
£6,38 Unit Price incl. VAT
20
ASTA LIVELLO OLIO COMPL.
832130
£5,47 Unit Price incl. VAT
21
ANELLO DI TENUTA (O-RING)
827085
£0,62 Unit Price incl. VAT
22
PARATIA OLIO SUPERIORE
485047
£12,44 Unit Price incl. VAT
23
INSERTO PORTA FILTRO COMPL.
845861
£10,25 Unit Price incl. VAT
24
GUARNIZIONE SEZ.CIRCOLARE
431065
£0,90 Unit Price incl. VAT
25
VITE TESTA ESAG. FLANG. M6x60 UNI-1665
B016425
£1,62 Unit Price incl. VAT

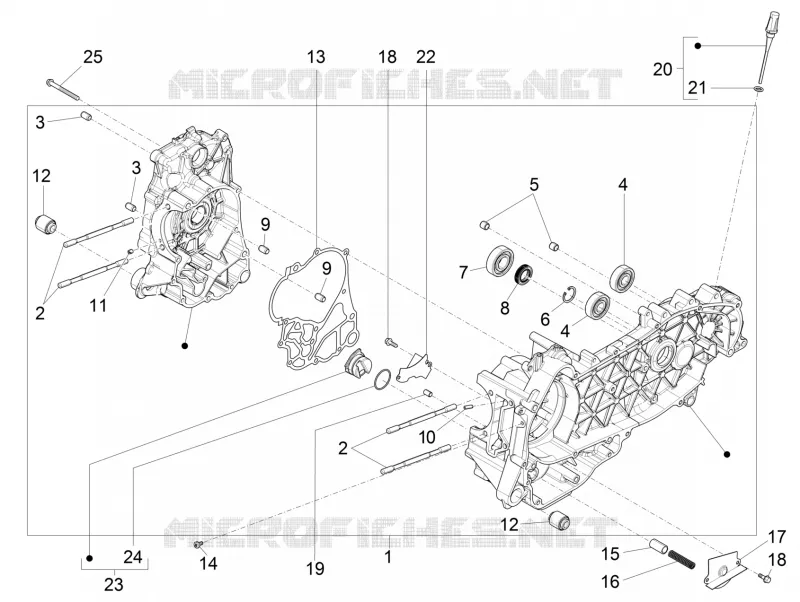

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
