Pump group-oil pan for GILERA PIAGGIO VESPA Beverly

Free shipping for all orders to United Kingdom over £150! See conditions.

Pump group-oil pan

1

Chain tensioner rod spacer

485868

Not Available

2

Chain tensioner rod

828303

Not Available

3

PATTINO FISSO

828308

£4,94 Unit Price incl. VAT

4

Screw w/ flange M6x25

414837

Not Available

5

Oil pump assembly

844352

Not Available

5

Oil pump

487343

Not Available

6

Screw w/ flange M6x25

414837

Not Available

7

VITE A TESTA ESAGONALE FLANG. PAR. FIL.

433477

£1,42 Unit Price incl. VAT

8

MOLLA A TAZZA

436695

£2,09 Unit Price incl. VAT

9

Screw w/ flange M6x14

833722

Not Available

9

Screw w/ flange

436788

Not Available

10

PARATIA OLIO

483767

£10,06 Unit Price incl. VAT

12

COPPA OLIO MOTORE

843761

£70,16 Unit Price incl. VAT

12

Pan oil

829523

Not Available

13

VITE A TESTA ESAGONALE FLANGIATA

484123

£0,54 Unit Price incl. VAT

14

CORONA POMPA OLIO

287913

£8,52 Unit Price incl. VAT

15

CATENA POMPA OLIO (50 PS)

82649R

£15,60 Unit Price incl. VAT

16

PIGNONE COM.POMPA OLIO

82783R

£22,50 Unit Price incl. VAT

16

Oil pump control pinion

483784

Not Available

17

Carter-oil pump gasket

486082

Not Available

18

Camshaft chain

82644R

Not Available

19

PIGNONE DISTRIBUZIONE

82782R

£22,31 Unit Price incl. VAT

19

Pinion

841193

Not Available

19

PIGNONE DISTRIBUZIONE

825595

£26,77 Unit Price incl. VAT

20

RONDELLA PARAOLIO

483918

£1,27 Unit Price incl. VAT

21

ANELLO DI TENUTA (O-R)

825620

£8,42 Unit Price incl. VAT

22

ANELLO DI TENUTA k7

82538R

£15,91 Unit Price incl. VAT

23

TAMPONE CATENA POMPA OLIO.

434345

£7,32 Unit Price incl. VAT

24

Cover

828875

Not Available

25

VITE TCIC M5X12

015585

Not Available

26

Oil filler plug

846819

Not Available

26

TAPPO OLIO COMPLETO

843364

£5,90 Unit Price incl. VAT

26

Oil plug assembly

827761

Not Available

28

O-ring

479986

Not Available

29

Plain washer

487937

Not Available

30

PARATIA OLIO SUPERIORE

485047

£12,44 Unit Price incl. VAT

31

GUARNIZIONE CARTER/COPPA OLIO

830128

£6,46 Unit Price incl. VAT

32

FASCETTA

564629

£3,49 Unit Price incl. VAT

33

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

£6,38 Unit Price incl. VAT

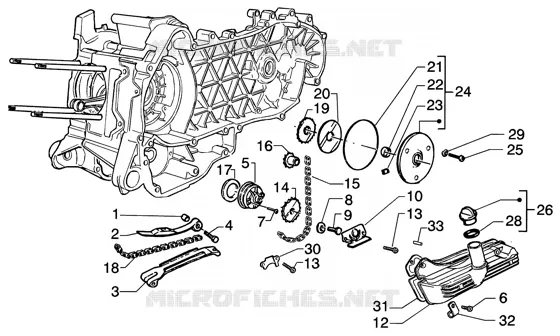

Find the detailed Pump group-oil pan GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
