Engine displacement
300
2
Model
GTS
3
Year
2016
4
Trim
GTS ie Super
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Rear luggage rack
by
Brakes pipes - Calipers (ABS)
Cooling system
1
2
3
4
5
6
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
32
33
33
33
33
34
34
34
34
35
36
36
36
37
38
39
39
39
39
39
1
Coolant tank
624402
Not Available
1
Coolant tank
657110
Not Available
2
Expansion tank plug
623673
£17,92 Unit Price incl. VAT
3
screw
257404
£1,16 Unit Price incl. VAT
4
Spring plate M6
254485
£1,64 Unit Price incl. VAT
5
Joint
577195
£8,92 Unit Price incl. VAT
6
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
6
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
7
Spring washer
709047
£0,70 Unit Price incl. VAT
8
Spring plate M6
254485
£1,64 Unit Price incl. VAT
9
Water cooler
577183
£280,33 Unit Price incl. VAT
10
Self tapping screw 4,2x16
CM178606
£9,08 Unit Price incl. VAT
10
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
11
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
12
Lower joint-right radiator connection pipe
577201
£20,53 Unit Price incl. VAT
13
Upper connection joint pipe
57333R
£56,30 Unit Price incl. VAT
14
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
15
Head coupling tube
653501
£52,40 Unit Price incl. VAT
16
Lower joint-left radiator connection pipe
57313R
£20,33 Unit Price incl. VAT
17
Lower joint pipe
623749
Not Available
17
Lower joint pipe
656437
£47,92 Unit Price incl. VAT
18
pipe
577384
£18,24 Unit Price incl. VAT
19
pipe
577433
£13,98 Unit Price incl. VAT
20
pipe
577436
Not Available
21
pipe
623013
£13,45 Unit Price incl. VAT
22
Cover complete joint
623438
Not Available
22
Joint for water pipes
656449
£16,22 Unit Price incl. VAT
23
Cover
621365
£2,22 Unit Price incl. VAT
24
Copper gasket
168077
£4,86 Unit Price incl. VAT
25
Fan engine
584669
£182,66 Unit Price incl. VAT
26
Screw M6x16
272836
£1,13 Unit Price incl. VAT
26
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
27
Spring plate M6
254485
£1,64 Unit Price incl. VAT
28
Left air duct
577187
£14,29 Unit Price incl. VAT
29
Right air duct
622839
£14,92 Unit Price incl. VAT
30
Guard
583282
£5,08 Unit Price incl. VAT
31
Hose clamp
CM001903
£1,87 Unit Price incl. VAT
32
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
33
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
34
Hose clamp
CM001907
£1,67 Unit Price incl. VAT
35
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
36
Hose clamp
CM001915
£1,99 Unit Price incl. VAT
37
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
38
Hose clamp
CM001922
£1,99 Unit Price incl. VAT
39
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT

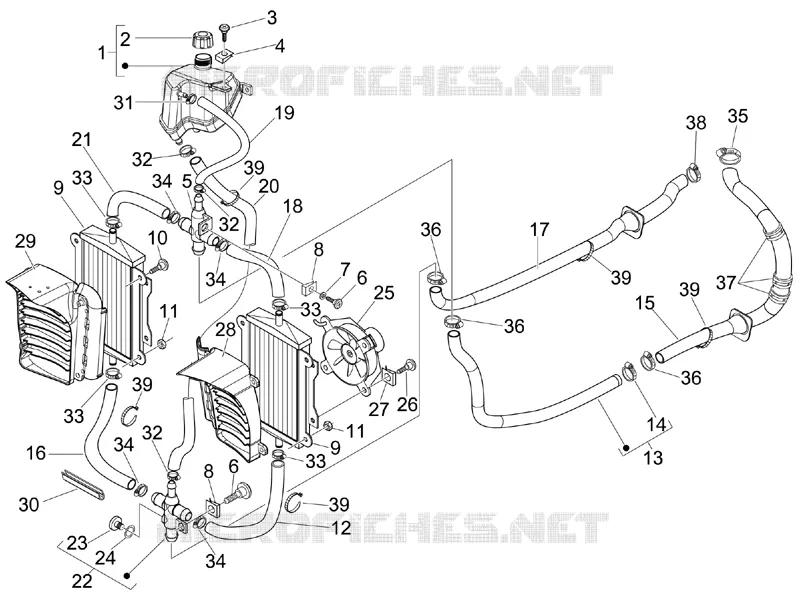

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
