1
Engine displacement
125
2
Model
BEVERLY
3
Year
0
4
Trim
Beverly RST
5
Parts Catalog
Side coverings
6
Parts Diagram
Parts Catalog
Shield
by
Footrest
Side coverings
1
2
3
4
5
5
6
6
7
7
8
8
9
10
11
11
1
Fairing
CM0246020090
Not Available
1
Fairing
CM02460200RF
Not Available
1
Fairing
CM02460200F2
Not Available
1
Fairing
CM02460200ND
Not Available
1
Fairing
CM02460200D9
Not Available
2
Fairing
CM02460100D9
Not Available
2
Fairing
CM02460100F2
Not Available
2
Fairing
CM0246010090
£102,38 Unit Price incl. VAT
2
Rear body side l.h.
CM02460100ND
£102,38 Unit Price incl. VAT
2
Fairing
CM02460100RF
Not Available
3
Left rubber buffer frame
CM016902000C
£85,69 Unit Price incl. VAT
4
Left rubber buffer frame
CM016901000C
£85,69 Unit Price incl. VAT
5
Metric screw TBC
259348
£1,04 Unit Price incl. VAT
6
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
7
Self tapping screw M4,2x25
259372
£0,83 Unit Price incl. VAT
8
Spring plate
CM017410
£0,71 Unit Price incl. VAT
9
"Beverly" plate
622051
Not Available
10
"125" name plate
623371
Not Available
10
"125" name plate
622041
Not Available
11
Self-tap screw
620511
£1,25 Unit Price incl. VAT

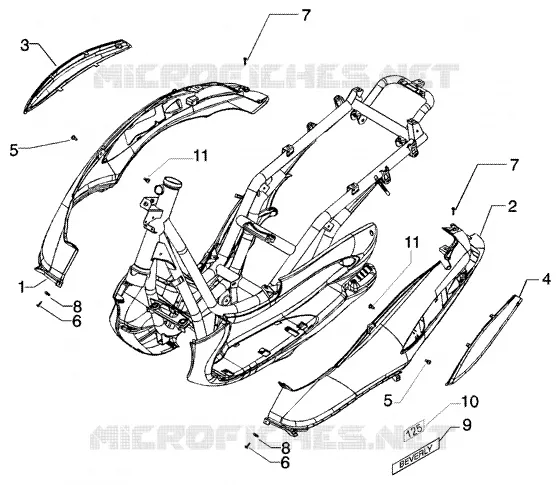

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
