1
Engine displacement
125
2
Model
LX
3
Year
2011
4
Trim
LX 4T 2V ie E3
5
Parts Catalog

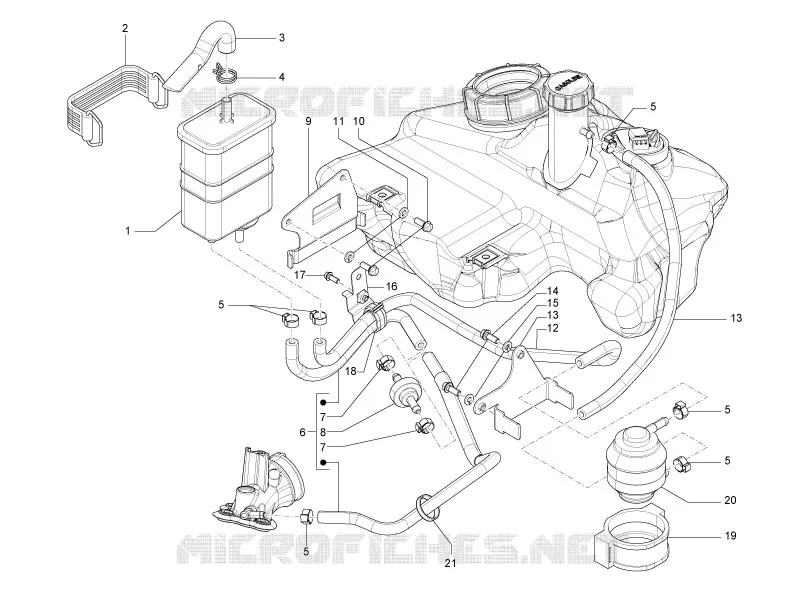

Anti-percolation system
6
Parts Diagram
Parts Catalog
Fuel tank
by
Driven pulley
Anti-percolation system
1
2
3
4
5
5
5
5
5
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
1
Canister completo di stiker
1B0045715
£109,08 Unit Price incl. VAT
2
Strip
090854
Not Available
3
Canister breather pipe
656581
£10,86 Unit Price incl. VAT
4
Hose clamp
CM002912
£0,24 Unit Price incl. VAT
5
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
6
Canister pipe/ Complete depressor
657162
£77,96 Unit Price incl. VAT
7
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
8
Safety valve
CM179003
Not Available
9
Bracket
576453
£18,34 Unit Price incl. VAT
10
Screw w/ flange M6x16
434541
Not Available
11
Spring washer 6,4x11,8x1
016406
Not Available
12
pipe
CM177932
Not Available
13
Valve connection bracket
576452
£4,72 Unit Price incl. VAT
14
Screw w/ flange M6x16
434541
Not Available
15
Spring washer 6,4x11,8x1
016406
Not Available
16
Pipe support bracket with U.P.
657166
£13,86 Unit Price incl. VAT
17
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT
18
Non return spring l=27
CM006904
£2,32 Unit Price incl. VAT
19
Maintenance
576454
£10,99 Unit Price incl. VAT
20
"Roll-over" valve
CM028204
£38,12 Unit Price incl. VAT
21
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
