1
Engine displacement
125
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog

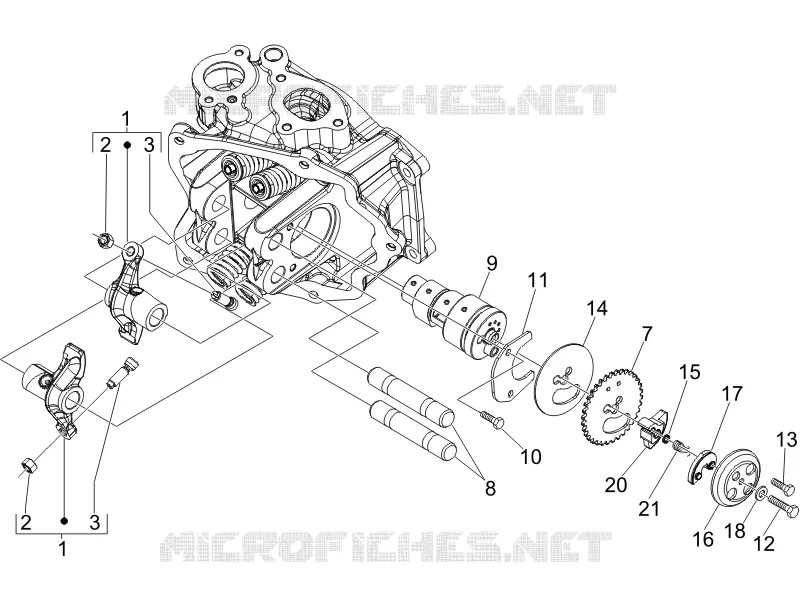

Rocking levers support unit
6
Parts Diagram
Parts Catalog
Secondary air box
by
Main cable harness
Rocking levers support unit
1
1
2
2
3
3
7
8
9
10
11
12
13
14
15
16
17
18
20
21
1
Rocker arm cpl.
830453
Not Available
2
Nut
484819
£1,33 Unit Price incl. VAT
3
Adjuster screw
82817R
Not Available
7
Timing system gear
486336
Not Available
8
Rocker arms axis
486339
£16,13 Unit Price incl. VAT
9
Camshaft
8459325
£227,48 Unit Price incl. VAT
10
Screw w/ flange
484123
£0,54 Unit Price incl. VAT
11
Camshaft plate
833308
Not Available
12
screw M6x35
414838
£1,27 Unit Price incl. VAT
13
Hex socket screw M5x30
018538
Not Available
14
Washer
487832
Not Available
15
Gasket
487833
£1,13 Unit Price incl. VAT
16
Decompression bell
826396
Not Available
17
Decompression counterweight
829134
Not Available
18
Washer
825363
£0,83 Unit Price incl. VAT
20
Decompressor counterweight
486331
Not Available
21
Spring
486974
£0,66 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
