1
Engine displacement
125
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog

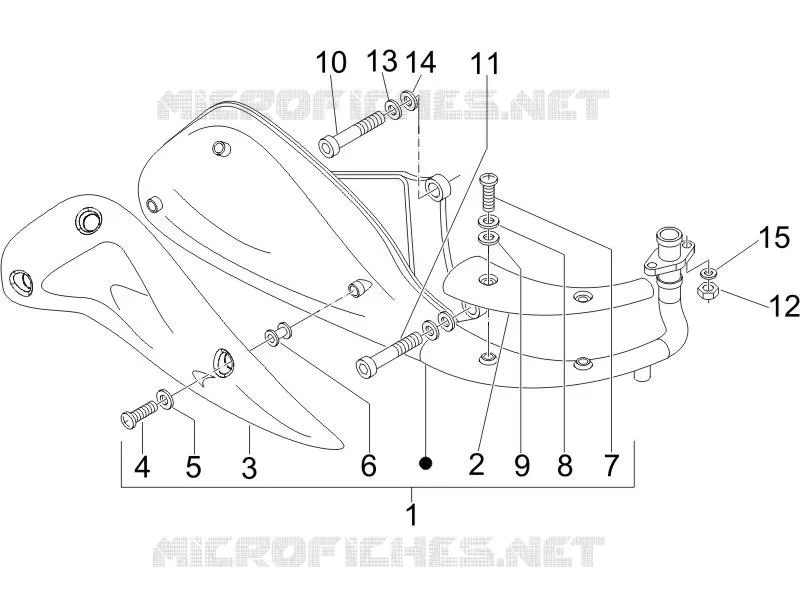

Silencer
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Crankcase cover - Crankcase cooling
Silencer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Catalytic converter complete with protection
848599
Not Available
2
Deflector
480401
Not Available
3
Protection
845465
Not Available
4
screw M5x10
842908
Not Available
5
Washer 6,6x18x1,6
841821
£0,62 Unit Price incl. VAT
6
Rubber spacer
841782
£1,18 Unit Price incl. VAT
7
screw
848766
Not Available
8
Washer
828535
£0,16 Unit Price incl. VAT
9
Spring washer 8,5x5,1x1,5
016405
Not Available
10
screw
844191
Not Available
11
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
12
Nut
436947
£1,14 Unit Price incl. VAT
13
Washer
709012
£1,27 Unit Price incl. VAT
14
Washer
825643
£0,53 Unit Price incl. VAT
15
Spring washer 16x8,2x2,2
834187
£1,04 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
