1
Engine displacement
125
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog

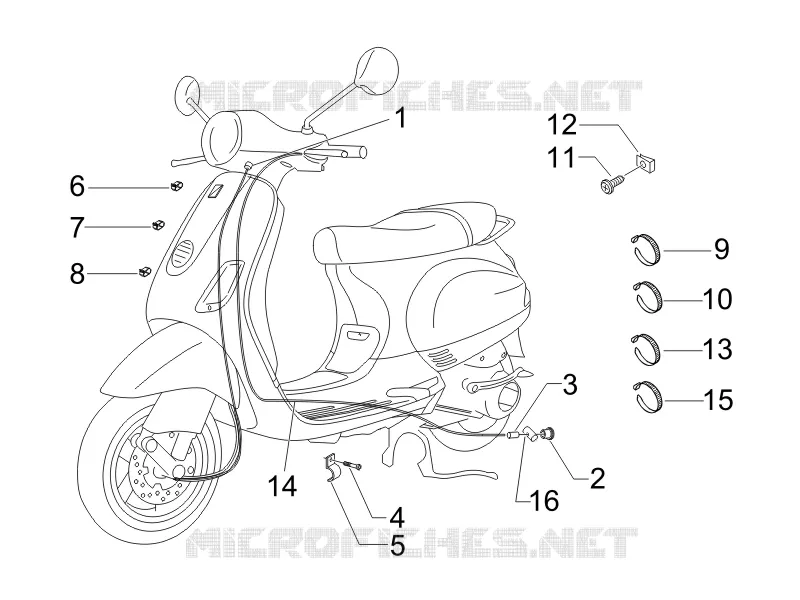

Transmissions
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Rear headlamps - Turn signal lamps
Transmissions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Complete kilometre counter flexible transmission
56307R
Not Available
2
Registro freno posteriore
270310
£5,26 Unit Price incl. VAT
3
Adjuster pin
179640
£7,87 Unit Price incl. VAT
4
Hex socket screw M6x20
709674
£1,27 Unit Price incl. VAT
5
Plate
564645
£1,39 Unit Price incl. VAT
6
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
7
Non return spring l=27
CM006904
£2,32 Unit Price incl. VAT
8
Spring
CM013201
£0,76 Unit Price incl. VAT
9
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
10
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
11
Self tapping screw 4,2x16
015911
Not Available
12
Plate
CM017408
£0,30 Unit Price incl. VAT
13
Hose clamp
273779
£1,99 Unit Price incl. VAT
14
Rear brake lever complete transmission
564217
£38,33 Unit Price incl. VAT
15
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
16
Bush
266040
£1,24 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
