Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
Steering tube ring nut
0111094
Not Available
2
Upper thrust ring
6506934
Not Available
3
Missing description
000000
Not Available
4
screw
031120
Not Available
5
Spring washer 13,75x8,15x4,5
016408
Not Available
6
Nut M8x6,5
020108
Not Available
7
Lower steering bearing
6500754
Not Available
8
Missing description
000000
Not Available
9
Cap
177609
£3,76 Unit Price incl. VAT
10
Nut
021114
Not Available
11
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT
12
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
Split pin
012789
Not Available
14
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
15
Front suspension cover
60041640M5
Not Available
15
Front suspension cover
6004164
£63,12 Unit Price incl. VAT
15
Front suspension cover
60041640GV
Not Available
16
Front suspension arm cover
561433
Not Available
17
Washer
012535
Not Available
18
Nut
021210
Not Available
19
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
20
Pad
174085
£2,87 Unit Price incl. VAT
21
Washer
174088
£1,62 Unit Price incl. VAT
22
Pad
174874
£3,66 Unit Price incl. VAT
23
Cover
092517
Not Available
24
Spring washer
709047
£0,70 Unit Price incl. VAT
25
Washer of the steering
003751
Not Available
26
Circlip
006422
Not Available
27
Washer Ø5,3xØ10x0,5
006975
Not Available
28
screw M5x16
031058
Not Available
29
O-ring
177408
£1,33 Unit Price incl. VAT
30
Washer
177414
£1,62 Unit Price incl. VAT
31
Washer
177445
£1,62 Unit Price incl. VAT
32
Ring
177521
£1,62 Unit Price incl. VAT
33
Complete front shock absorber
646959
Not Available
33
Front shock absorber cpl.
58509R
Not Available
34
Pinion
267819
£3,60 Unit Price incl. VAT
35
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
36
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
37
Roller cage
198513
£15,49 Unit Price incl. VAT
38
Not available
560286
Not Available
39
Drawn cap
177436
Not Available
40
Ring
177494
£4,73 Unit Price incl. VAT
41
Snap ring
006635
Not Available
42
Piston pin
177451
£22,88 Unit Price incl. VAT
43
Roller cage
177442
£7,33 Unit Price incl. VAT
44
Gasket ring
177443
£3,55 Unit Price incl. VAT
45
Bearing
177610
£20,51 Unit Price incl. VAT
46
Hex socket screw M6x20
271147
Not Available
47
Brake disc
56395R
£61,37 Unit Price incl. VAT
48
Front wheel hub
560284
Not Available
49
Gasket ring
119219
£1,58 Unit Price incl. VAT
50
Gasket
006731
Not Available
51
Steering tube complete with arm
6484135
£421,55 Unit Price incl. VAT

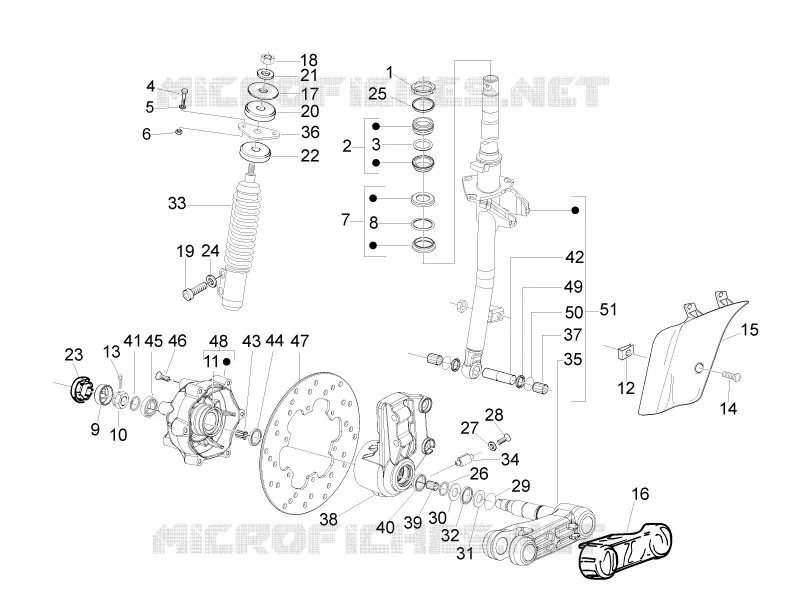

Find the detailed Fork/steering tube - Steering bearing unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

LX 125 2010
View

LX 125 2011
View
