Parts Catalog
Flywheel magneto
6
Parts Diagram
Parts Catalog
Crankcase cooling
by
Belt cooling box

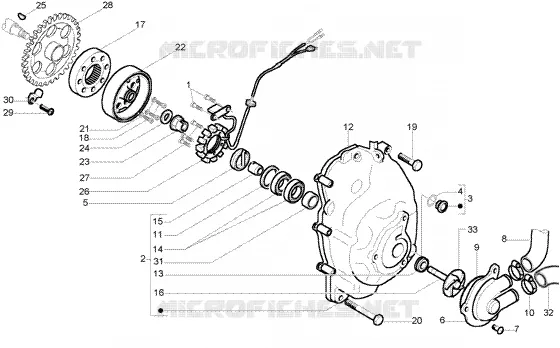

Flywheel magneto
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Screw M5x10
018575
Not Available
2
Flywheel cover
8458285
Not Available
2
Air deflector
8423925
Not Available
3
Timing plug assembly
8290405
£16,91 Unit Price incl. VAT
4
O-ring
479986
Not Available
5
Drive key
842390
£3,37 Unit Price incl. VAT
6
Water pump cover
486237
£26,18 Unit Price incl. VAT
7
Screw M5x22
828662
£1,33 Unit Price incl. VAT
8
pipe
840468
Not Available
9
O-ring
485080
£2,23 Unit Price incl. VAT
10
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
11
Gasket
842455
Not Available
12
Flywheel housing cover gasket
840504
£10,57 Unit Price incl. VAT
13
Ceramic insert
486216
Not Available
14
Bearing 28x8x9
82755R
£14,66 Unit Price incl. VAT
15
Pump impeller drive key
842389
£31,21 Unit Price incl. VAT
16
Water pump shaft assy.
8447595
£57,52 Unit Price incl. VAT
16
Shaft pin
841333
£96,25 Unit Price incl. VAT
17
Sprag clutch
831322
Not Available
18
Hex socket screw M6x25
840893
£0,76 Unit Price incl. VAT
19
screw M6x35
414838
£1,27 Unit Price incl. VAT
20
screw
844160
Not Available
20
screw
840538
Not Available
21
Break washer
479515
£0,47 Unit Price incl. VAT
22
Rotor, assy.
58049R
Not Available
23
Nut
842388
Not Available
24
Plain washer
842385
£2,40 Unit Price incl. VAT
25
Transmission key
000097
Not Available
26
Backplate, assy.
58048R
£160,87 Unit Price incl. VAT
27
Low head socket screw M6x30
122637
£2,32 Unit Price incl. VAT
28
Starter motor gear
82737R
£74,82 Unit Price incl. VAT
29
screw M6x14
008375
Not Available
30
Plate
840532
Not Available
31
Gasket ring
485084
Not Available
31
Gasket ring
842595
Not Available
32
Pump-radiator pipe fitting
621294
Not Available
33
Water pump impeller cpl.
844730
£12,84 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
