1
Engine displacement
150
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog

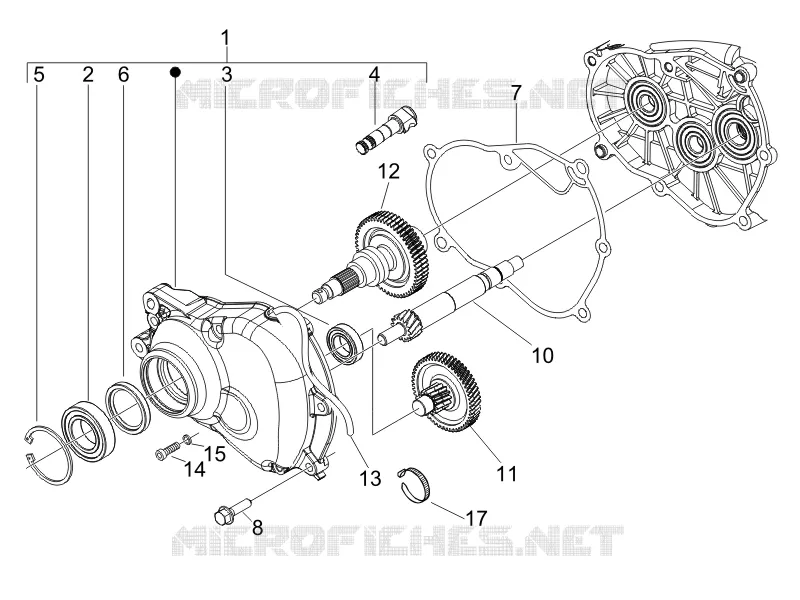

Reduction unit
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Rear brake - Brake jaw
Reduction unit
1
2
3
4
5
6
7
8
10
11
12
13
14
15
1
Side cover
8460265
£106,94 Unit Price incl. VAT
2
Radial bearing 25x52x15
478984
Not Available
3
Radial ball bearing 15x42x13
485912
Not Available
4
Shoe fulcrum pin
272921
£13,70 Unit Price incl. VAT
5
Snap ring
006652
Not Available
6
Gasket ring
82541R
Not Available
7
Reduction unit cover gasket
847930
£10,28 Unit Price incl. VAT
8
Screw w/ flange M8x45
487211
Not Available
10
Driven pulley shaft
485879
Not Available
11
Transmission shaft
8428785
£167,95 Unit Price incl. VAT
12
Rear wheel axle with U.P.
487127
Not Available
13
Breather pipe
844669
Not Available
14
Hex socket screw M8x12
269755
£1,36 Unit Price incl. VAT
15
Washer 8.2x12x1
485703
£0,96 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
