Parts Catalog
Supply system
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Front wheel
Supply system
1
2
3
4
5
6
7
7
8
9
11
12
12
12
13
14
1
Fuel pump
639861
Not Available
2
Electrical pump support
624913
Not Available
3
Electrical pump support
624866
Not Available
4
Screw w/ flange M6x16
434541
Not Available
5
Spring washer 6,4x11,8x1
016406
Not Available
6
Valve
654935
£23,59 Unit Price incl. VAT
7
Hose clamp
CM001901
£1,76 Unit Price incl. VAT
8
Fuel tube
CM004103
£0,96 Unit Price incl. VAT
8
Fuel pipe
CM006116
£14,28 Unit Price incl. VAT
9
Fuel pipe 5,5x10
CM004107
Not Available
11
Hose clamp
CM002903
£0,24 Unit Price incl. VAT
12
Hose clamp
CM001901
£1,76 Unit Price incl. VAT
13
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
14
Spring
652840
Not Available

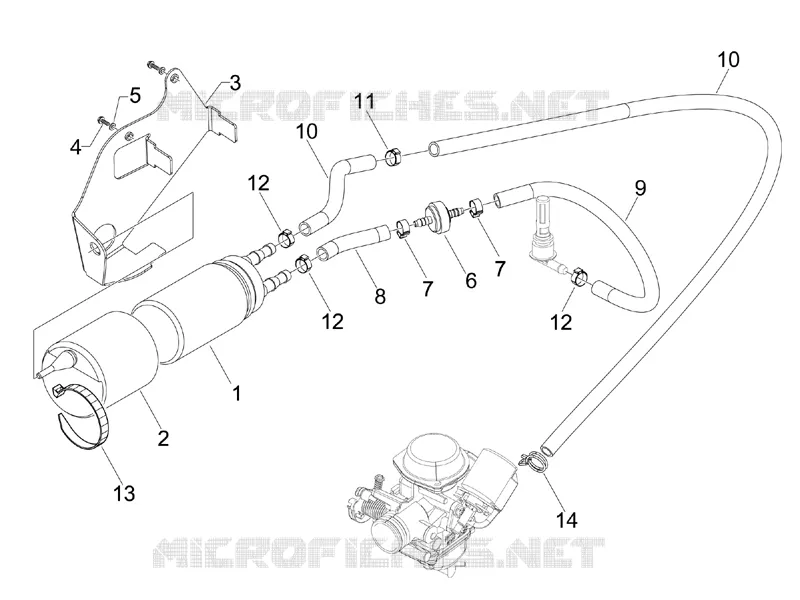

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
