Engine displacement
150
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Rear suspension - Shock absorber/s
Handlebars - Master cil.
1
2
3
4
5
7
8
9
10
11
17
18
18
19
20
21
22
23
24
25
26
27
28
29
1
Handlebar
6221935
Not Available
2
Flat elastic washer with internal toothing 17x10,3x2
012543
Not Available
3
Nut M10
015330
Not Available
4
Flat washer 18x10,2x2,5
267917
£0,36 Unit Price incl. VAT
5
Hex socket screw
655554
£1,97 Unit Price incl. VAT
5
screw
223605
Not Available
7
Hose
CM060966
Not Available
8
Screw with bushing
123394
£2,69 Unit Price incl. VAT
9
Grip, l.h.
274489
£8,42 Unit Price incl. VAT
10
RH hand grip
274491
£8,42 Unit Price incl. VAT
11
Ring 38,3x27x1,2
562923
£0,48 Unit Price incl. VAT
17
Left hand grip with rear brake lever
CM063804
£28,70 Unit Price incl. VAT
18
Screw with nut
265249
£3,55 Unit Price incl. VAT
19
Screw with bushing
123394
£2,69 Unit Price incl. VAT
20
Spring
267948
£0,96 Unit Price incl. VAT
21
Rear brake control lever
564683
£16,16 Unit Price incl. VAT
22
Brakes pump
56216R
Not Available
22
Front master cilinder
CM074904
£113,68 Unit Price incl. VAT
23
Brake lever (Kaliani)
650152
Not Available
23
Fr. br. lever GRIMECA
646803
£55,20 Unit Price incl. VAT
23
Brake lever
646833
Not Available
24
Gas lever transmission
CM065917
Not Available
25
Nut
002613
Not Available
26
Nut
020105
Not Available
27
Guard
147511
£1,39 Unit Price incl. VAT
28
Adjuster screw
269145
£2,58 Unit Price incl. VAT
29
Nut M6
020206
Not Available

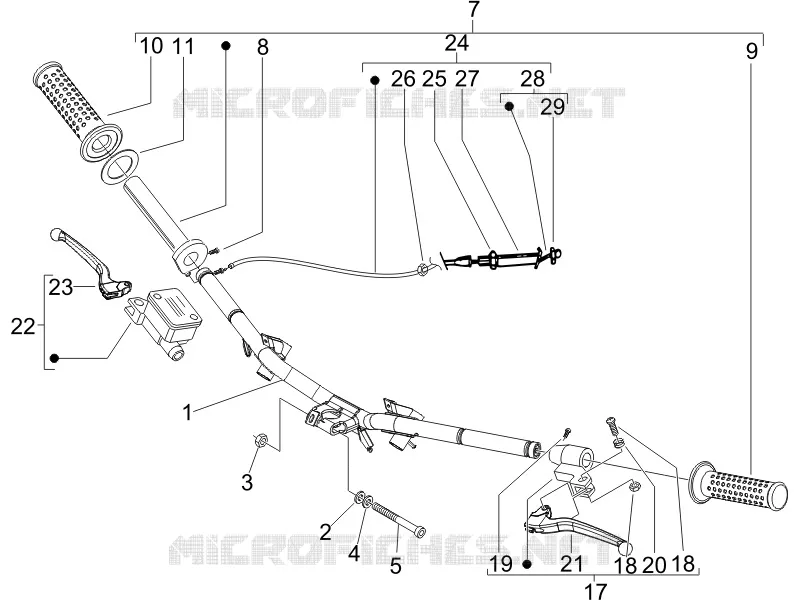

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
