1
Engine displacement
150
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog

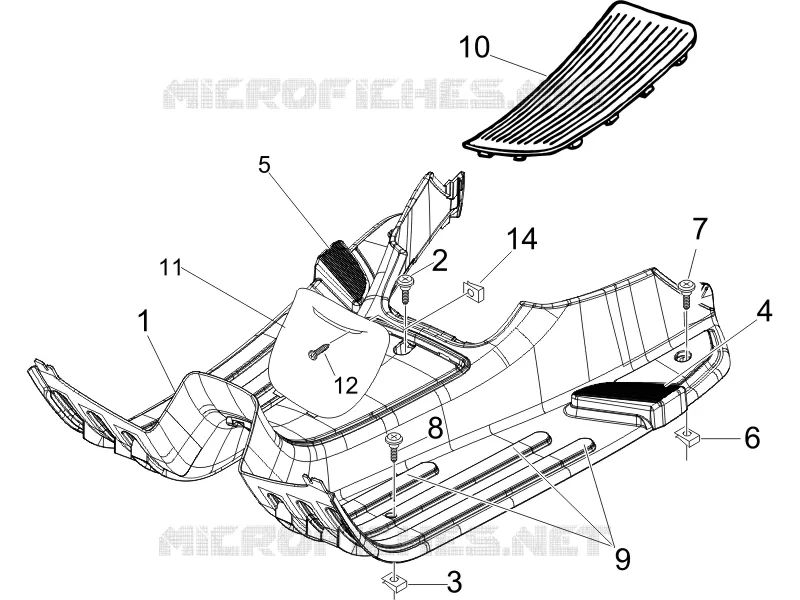

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Cylinder head cover
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
14
1
Painted footrest
62212440M4
Not Available
1
FOOTBOARD ET4
6221244087
Not Available
1
Painted footrest
62212440R7
Not Available
1
Footrest
62212440F3
Not Available
1
Painted footrest
62212440DE
Not Available
1
FOOTBOARD ET4 125 UNPAINTED
62212440AF
Not Available
1
Painted footrest
62212440BR
£185,12 Unit Price incl. VAT
1
Footrest
62212440AH
Not Available
1
Painted footrest
62212440VG
Not Available
1
Painted footrest
62212440XN2
£183,86 Unit Price incl. VAT
1
Painted footrest
62212440GP
£183,86 Unit Price incl. VAT
1
Footrest
62212440EU
Not Available
1
Footrest
62212440F2
Not Available
1
Painted footrest
62212440ND
£185,12 Unit Price incl. VAT
2
Self-tap screw
576189
Not Available
3
Plate
CM017406
£0,95 Unit Price incl. VAT
4
LH footrest
622125
£12,46 Unit Price incl. VAT
5
RH footpad
622126
£12,46 Unit Price incl. VAT
6
Spring plate M6
254485
£1,64 Unit Price incl. VAT
7
Screw m6x30
271891
£1,28 Unit Price incl. VAT
8
Self tapping screw
297498
£0,60 Unit Price incl. VAT
9
Kit strips, footboard
622139
Not Available
10
Mat
298243
Not Available
11
Flap
62213650ND
Not Available
11
Spark plug insp. door
622136
Not Available
11
Painted spark plug inspection cover
62213660ND
Not Available
11
Painted spark plug inspection cover
62213650R7
Not Available
11
SPARE PLUG DOOR
6221365087
Not Available
11
S.PLUG DOOR -UNPAINTED-
62213600AF
Not Available
11
Painted spark plug inspection cover
62213650GP
£81,11 Unit Price incl. VAT
11
Spark plug insp. door
62213650VG
Not Available
11
DOORS
6221366087
Not Available
11
SPARE PLUG DOOR
62213650AF
Not Available
11
DOORS
62213660R7
Not Available
11
Painted spark plug inspection cover
62213650DE
Not Available
11
Flap
62213650F2
Not Available
11
DOORS
62213660AF
Not Available
11
Spark plug insp. door
62213600VG
Not Available
11
Painted spark plug inspection cover
62213600GP
Not Available
11
DOORS
62213660F2
Not Available
11
Flap
62213650F3
Not Available
11
DOORS
62213660F3
£81,11 Unit Price incl. VAT
12
Self tapping screw 4,2x16
015911
Not Available
14
Plate
CM017408
£0,30 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
