Engine displacement
150
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Crankshaft
by
Stand/s
Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
1
Piston + piston pin Cat.2
8270280002
Not Available
1
Piston + piston pin Cat.3
8270280003
Not Available
1
Piston + piston pin Cat.1
8270280001
Not Available
1
Piston + piston pin Cat.4
8270280004
Not Available
2
Piston pin
482335
£13,97 Unit Price incl. VAT
3
Compression ring Ø62,6x1
486294
Not Available
4
Oil scraper ring Ø62,6x1
486295
Not Available
5
Oil scraper ring Ø62,6x2,5
486355
Not Available
6
Snap ring
963486
£0,58 Unit Price incl. VAT
7
Cylinder-piston-wrist pin assy.
827041
£343,74 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
£14,40 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
875112
£14,80 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
828148
Not Available
8
Cylinder base gasket 0,6 mm
828147
Not Available
8
Cylinder base gasket 0,4 mm
828146
Not Available

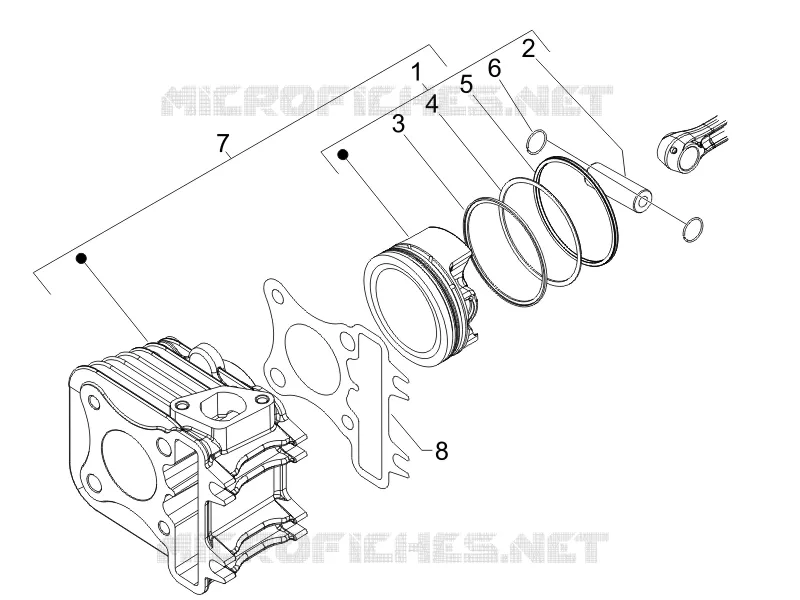

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
