1
Engine displacement
150
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog

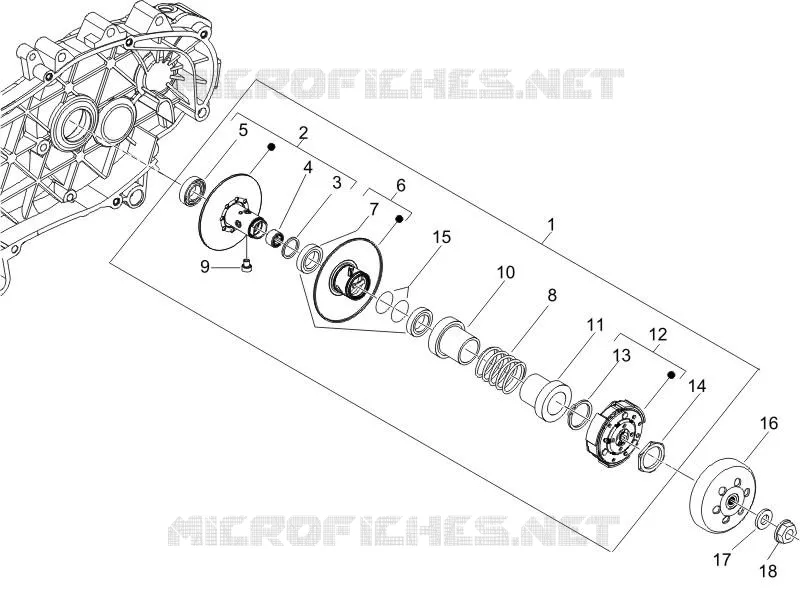

Driven pulley
6
Parts Diagram
Parts Catalog
Rear wheel
by
Remote control switches - Battery - Horn
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Pulley
82743R
Not Available
2
Fixed driven half pulley
830580
£97,84 Unit Price incl. VAT
3
Snap ring
483226
£1,87 Unit Price incl. VAT
4
Roller cage 20x29x18
82518R
£29,20 Unit Price incl. VAT
5
Radial bearing 17x30
483261
Not Available
6
Adjustable pulley, half
827499
Not Available
7
Gasket ring
431089
£8,58 Unit Price incl. VAT
8
Variator spring
825726
Not Available
9
Guide pin L=12,5
828717
£1,50 Unit Price incl. VAT
10
Cup
431093
Not Available
11
Clutch side cap
487936
£8,76 Unit Price incl. VAT
12
Complete centrifugal clutch assembly
CM144002
Not Available
13
Gasket ring
006410
Not Available
14
Ring nut
433232
£13,28 Unit Price incl. VAT
15
Gasket
430585
£0,88 Unit Price incl. VAT
16
Clutch drum
844049
Not Available
17
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
18
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
