1
Engine displacement
350
2
Model
BV
3
Year
2017
4
Trim
BV ST 4T 4V ie E4 ABS
5
Parts Catalog

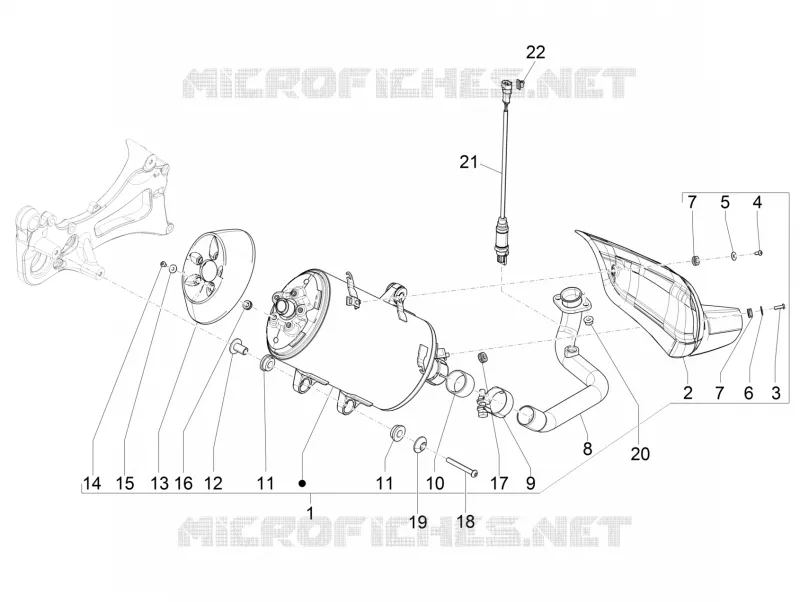

Silencer
6
Parts Diagram
Parts Catalog
Rear luggage rack
by
Rear cover - Splash guard
Silencer
1
2
3
4
5
6
7
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
1
Silencer complete with protection
1A0079775
Not Available
2
Protection
1A007831
Not Available
3
Torx Screw
880285
£1,24 Unit Price incl. VAT
4
screw M5x10
842908
Not Available
5
Washer 6,6x18x1,6
841821
£0,62 Unit Price incl. VAT
6
Flat washer
827526
£0,17 Unit Price incl. VAT
7
Fairlead
487665
£1,94 Unit Price incl. VAT
8
Exhaust manifold
1A007585
£76,68 Unit Price incl. VAT
9
Hose clamp
874957
£27,76 Unit Price incl. VAT
10
Graphite bushing
8749465
£49,63 Unit Price incl. VAT
11
Rubber PLUG
880295
£3,22 Unit Price incl. VAT
12
Spacer
880296
£17,40 Unit Price incl. VAT
13
Final canopy protection
880515
£13,37 Unit Price incl. VAT
14
screw M5x10
842908
Not Available
15
Washer 6,6x18x1,6
841821
£0,62 Unit Price incl. VAT
16
Fairlead
487665
£1,94 Unit Price incl. VAT
17
Fairlead
B013302
£9,58 Unit Price incl. VAT
18
Torx Screw M8x65
841023
£1,62 Unit Price incl. VAT
19
Spacer
B015885
£7,64 Unit Price incl. VAT
20
Flanged nut
015341
Not Available
21
Lamda sensor
639806
Not Available
22
Spring for connector
639560
£3,61 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
