1
Engine displacement
350
2
Model
BV
3
Year
2017
4
Trim
BV ST 4T 4V ie E4 ABS
5
Parts Catalog
Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
Driving mirror/s
by
Stand/s

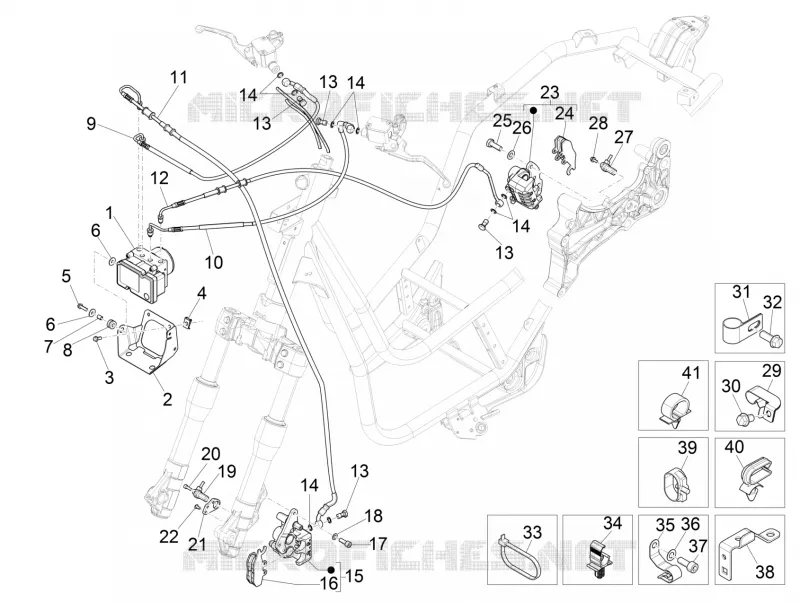

Brakes pipes - Calipers (ABS)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
13
13
13
14
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
ABS electro-hydraulic control unit
1C001631
£958,16 Unit Price incl. VAT
2
ABS support bracket
667354
£16,26 Unit Price incl. VAT
3
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
4
Spring plate M6
254485
£1,64 Unit Price incl. VAT
5
Hex screw M6x20
018639
Not Available
6
Washer
179575
£1,33 Unit Price incl. VAT
7
Spacer
174969
£1,50 Unit Price incl. VAT
8
Pad
939278
£4,45 Unit Price incl. VAT
9
ABS unit - right brake pump pipe
667300
£79,81 Unit Price incl. VAT
10
ABS unit - left brake pump pipe
667301
£79,81 Unit Price incl. VAT
11
ABS unit brake pipe - front brake pin
667302
£136,51 Unit Price incl. VAT
12
ABS unit - rear brake calliper flexible hose
1C002518
£64,67 Unit Price incl. VAT
13
Special screw
1C002059R
Not Available
14
Gasket
127927
£1,04 Unit Price incl. VAT
15
(Heng Tong) Left brake pin
CM068313
£224,40 Unit Price incl. VAT
16
(Heng Tong) Brake pads couple
651253
£37,00 Unit Price incl. VAT
17
screw
598919
£0,58 Unit Price incl. VAT
18
Spring washer
709047
£0,70 Unit Price incl. VAT
19
Sensor ABS
859792
Not Available
20
screw
975805
Not Available
21
ABS support bracket sensor
667034
£59,57 Unit Price incl. VAT
22
screw M5x10
842908
Not Available
23
Brake caliper
668886
£168,53 Unit Price incl. VAT
24
(Heng Tong) Brake pads couple
665842
£36,64 Unit Price incl. VAT
25
Hex screw
665983
£1,24 Unit Price incl. VAT
26
Washer
012535
Not Available
27
Sensor ABS
859792
Not Available
28
screw
975805
Not Available
29
Hose clamp
667113
£5,18 Unit Price incl. VAT
30
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT
31
Hose clamp
667643
£4,38 Unit Price incl. VAT
32
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
33
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
34
Hose clamp
675510
£3,97 Unit Price incl. VAT
35
Hose clamp
564629
£3,49 Unit Price incl. VAT
35
Spring plate M6
254485
£1,64 Unit Price incl. VAT
36
Spring washer 12x6,4x0,5
006976
Not Available
37
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
38
Clamp support bracket
1C002519
£8,10 Unit Price incl. VAT
39
Hose clamp
573918
£1,00 Unit Price incl. VAT
39
Hose clamp
CM006901
£4,73 Unit Price incl. VAT
40
Hose clamp
217280
Not Available
41
Elastic spring
231590
£0,60 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
