1
Engine displacement
350
2
Model
BV
3
Year
2017
4
Trim
BV ST 4T 4V ie E4 ABS
5
Parts Catalog

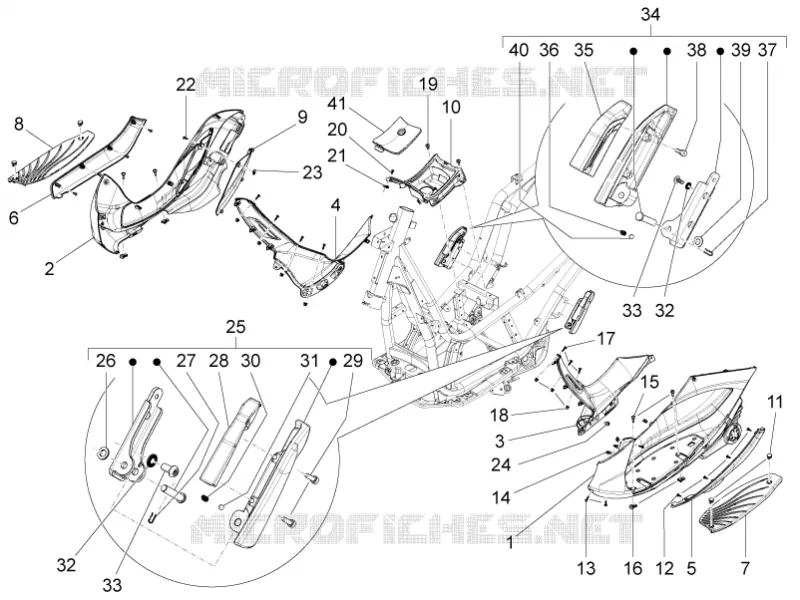

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Fuel tank
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
33
34
35
36
37
38
39
40
41
1
Rubber mat l.h.
672624000C
£74,32 Unit Price incl. VAT
2
Rubber mat r.h.
673207000C
Not Available
3
Left central cover
65634400XE8
£133,94 Unit Price incl. VAT
4
Right central cover
65634500XE8
£133,94 Unit Price incl. VAT
5
Left spoiler
65635100XE8
£46,07 Unit Price incl. VAT
6
Right spoiler
65635200XE8
£46,07 Unit Price incl. VAT
7
Lh mat
656828
£83,53 Unit Price incl. VAT
8
Rh mat
656829
Not Available
9
Spark plug insp. door
656361000C
£22,51 Unit Price incl. VAT
10
Central cover
67494700XE8
Not Available
11
Pin
CM011101
£2,66 Unit Price incl. VAT
12
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
13
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
14
Spring plate
CM017410
£0,71 Unit Price incl. VAT
15
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
16
Spring plate M6
254485
£1,64 Unit Price incl. VAT
17
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
18
Expansion plug
199190
£0,17 Unit Price incl. VAT
19
screw
CM179202
£1,27 Unit Price incl. VAT
20
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
21
Spring plate
CM017410
£0,71 Unit Price incl. VAT
22
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
23
Spring plate
CM017410
£0,71 Unit Price incl. VAT
24
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
25
Complete left footrest
65682300XE8
£108,11 Unit Price incl. VAT
26
Flat washer 15x8,4x1,5
003058
Not Available
27
Elastic spring
259933
£0,62 Unit Price incl. VAT
28
LH rear footrests rubber
656993
£12,44 Unit Price incl. VAT
29
screw
975805
Not Available
30
Premisphere spring
295590
Not Available
31
Ball D6
295591
Not Available
32
Spring washer 16x8,2x2,2
834187
£1,04 Unit Price incl. VAT
33
Hex socket screw
582428
£0,65 Unit Price incl. VAT
34
Complete right footrest
65682500XE8
£108,11 Unit Price incl. VAT
35
RH rear footrests rubber
656994
£12,44 Unit Price incl. VAT
36
Premisphere spring
295590
Not Available
37
Elastic spring
259933
£0,62 Unit Price incl. VAT
38
screw
975805
Not Available
39
Flat washer 15x8,4x1,5
003058
Not Available
40
Ball D6
295591
Not Available
41
Fuel door
67494800XE8
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
