1
Engine displacement
50
2
Model
S
3
Year
2011
4
Trim
S 4T 4V College
5
Parts Catalog

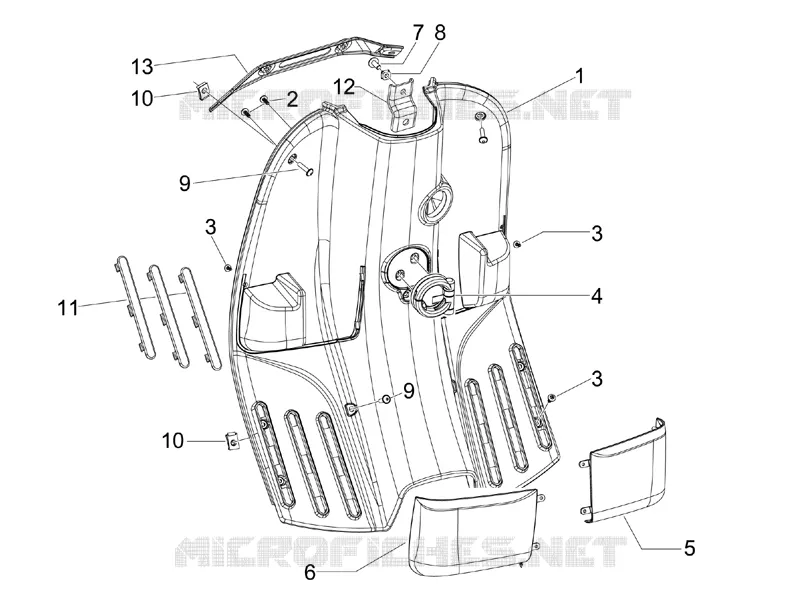

Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Crankshaft
Front glove-box - Knee-guard panel
1
2
3
3
3
4
5
6
7
8
9
9
10
10
11
12
13
1
Counter shield
654256
Not Available
1
Counter shield
67495400EZ
Not Available
1
Counter shield
65425600R7
Not Available
1
Painted leg shield back plate
6749540090
Not Available
1
Counter shield
65425600EZ
Not Available
1
Counter shield
65425600AH
Not Available
1
Counter shield
65425600BR
Not Available
1
Counter shield
65425600DI
Not Available
1
Counter shield
6542560090
Not Available
1
Counter shield
65425600AI
Not Available
1
Painted leg shield back plate
67495400DI
Not Available
1
Painted leg shield back plate
67495400BR
Not Available
1
Counter shield
674954
Not Available
2
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
2
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
3
Self tapping screw
297498
£0,60 Unit Price incl. VAT
4
Bag holder hook
575819
£14,98 Unit Price incl. VAT
5
Right glovebox
65429500AH
£37,63 Unit Price incl. VAT
5
Right glovebox
65429500EZ
£37,63 Unit Price incl. VAT
5
Right glovebox
65429500AI
£37,90 Unit Price incl. VAT
5
Right glovebox
65429500DI
£37,63 Unit Price incl. VAT
5
Right glovebox
65429500BR
Not Available
5
Right glovebox
6542950090
£37,63 Unit Price incl. VAT
5
Right glovebox
654295
£35,62 Unit Price incl. VAT
5
Right glovebox
65429500R7
Not Available
6
Left glovebox
65429400R7
Not Available
6
Left glovebox
65429420EZ
Not Available
6
Left glovebox
6542940090
Not Available
6
Left glovebox
654294
£35,62 Unit Price incl. VAT
6
Left glovebox
65429400AH
£37,63 Unit Price incl. VAT
6
Left glovebox
65429400BR
Not Available
6
Left glovebox
65429400EZ
Not Available
6
Left glovebox
65429400DI
£37,63 Unit Price incl. VAT
6
Left glovebox
65429400AI
£37,90 Unit Price incl. VAT
6
Left glovebox
65429400NL
£37,90 Unit Price incl. VAT
7
Self-tap screw
576189
Not Available
7
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
8
Spring plate
CM017409
£1,27 Unit Price incl. VAT
9
Screw w/ flange
AP8152338
£2,34 Unit Price incl. VAT
10
Spring plate M5
248419
£2,00 Unit Price incl. VAT
11
Packing
654297
£5,68 Unit Price incl. VAT
12
Leg shield back plate fixing central bracket
654292
£15,66 Unit Price incl. VAT
13
Upper fixing bracket of the leg shield back plate with U.P.
654290
£21,38 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
