Head unit - Valve

1

Cylinder head assy.

848377

Not Available

2

Exhaust pipe gasket

480853

£5,16 Unit Price incl. VAT

3

Stud bolt M7

435629

£1,87 Unit Price incl. VAT

4

Upper cap

483914

£5,71 Unit Price incl. VAT

5

Lower cap

483711

£2,12 Unit Price incl. VAT

6

Exhaust valve

873114

Not Available

7

Intake valve

872999

Not Available

8

Spring

828480

£11,04 Unit Price incl. VAT

9

Valve half-cone

285846

£1,98 Unit Price incl. VAT

10

Valve gasket ring

436438

£11,03 Unit Price incl. VAT

11

Thermistor

82622R

£25,90 Unit Price incl. VAT

12

Cylinder head gasket 0,3 mm

831173

Not Available

13

Screw w/ flange

485603

£1,96 Unit Price incl. VAT

14

Nut M8x1,25

411296

£1,97 Unit Price incl. VAT

15

Locating dowel Ã˜7,5x12

277916

£6,38 Unit Price incl. VAT

16

Thermostat

82831R

Not Available

17

Hex socket screw M5x20

845753

Not Available

19

Thermostat cover

845604

Not Available

20

By-pass pipe

434381

£9,40 Unit Price incl. VAT

21

Hose clamp

CM002903

£0,24 Unit Price incl. VAT

24

Locating dowel Ã˜11x10

478115

Not Available

25

Bleed valve cap

063435

Not Available

26

Gasket

297027

£1,51 Unit Price incl. VAT

27

Bleed screw

845605

£15,49 Unit Price incl. VAT

28

Plug M6x10

842360

£2,20 Unit Price incl. VAT

29

Lock-strap L=180mm

145298

£1,14 Unit Price incl. VAT

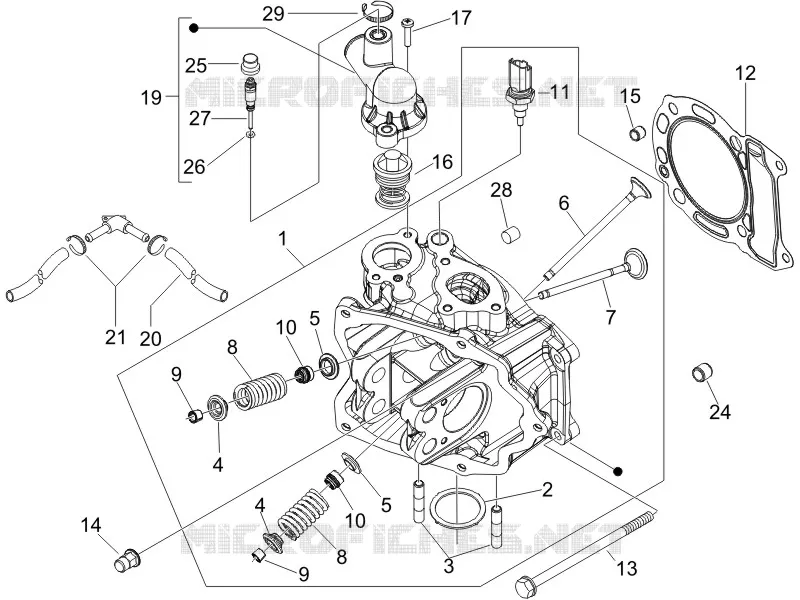

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
