1
Engine displacement
250
2
Model
BEVERLY
3
Year
2007
4
Trim
Beverly ie E3
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Crankcase
Cooling system
1
2
3
7
8
9
10
10
11
12
13
15
16
17
18
19
20
21
22
23
24
25
26
28
29
29
30
32
33
35
36
37
1
Coolant tank
624598
Not Available
2
Spring plate M6
254485
£1,64 Unit Price incl. VAT
3
Expansion tank plug
623673
£17,92 Unit Price incl. VAT
7
Metric screw M6x20
259830
Not Available
8
Fuel tank gasket
620737
£2,17 Unit Price incl. VAT
9
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
10
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
10
Hose clamp
CM001922
£1,99 Unit Price incl. VAT
11
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
12
Hose clamp
CM001915
£1,99 Unit Price incl. VAT
13
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
15
Flat washer 16x6,5x1,5
013880
Not Available
16
Self locking nut M6
195482
£1,27 Unit Price incl. VAT
17
Washer d6,2x20x1
013092
Not Available
18
Lower rubber
258904
£1,54 Unit Price incl. VAT
19
Metric screw M6x20
259830
Not Available
20
Spacer
273288
£1,87 Unit Price incl. VAT
21
Upper rubber
351782
£2,02 Unit Price incl. VAT
22
Non return spring
582153
£4,42 Unit Price incl. VAT
23
Spring plate M6
254485
£1,64 Unit Price incl. VAT
24
Screw M6x16
272836
£1,13 Unit Price incl. VAT
24
RETUN PIPE B250
624597
Not Available
25
PUMP-RADIATOR PIPE JOINT PIPE
623950
Not Available
26
RETUN PIPE B250
624597
Not Available
28
Copper gasket
168077
£4,86 Unit Price incl. VAT
29
Water cooler
57311R
£632,41 Unit Price incl. VAT
30
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
32
Electric fan
58170R
Not Available
32
Complete electric fan
640389
Not Available
32
Fan engine
621030
Not Available
33
Cooler-tank return pipe
CM007015
£19,26 Unit Price incl. VAT
33
Cooler-tank return pipe
576722
Not Available
35
Support
620672
£10,16 Unit Price incl. VAT
36
Cover
621365
£2,22 Unit Price incl. VAT
37
Head coupling tube
623949
Not Available

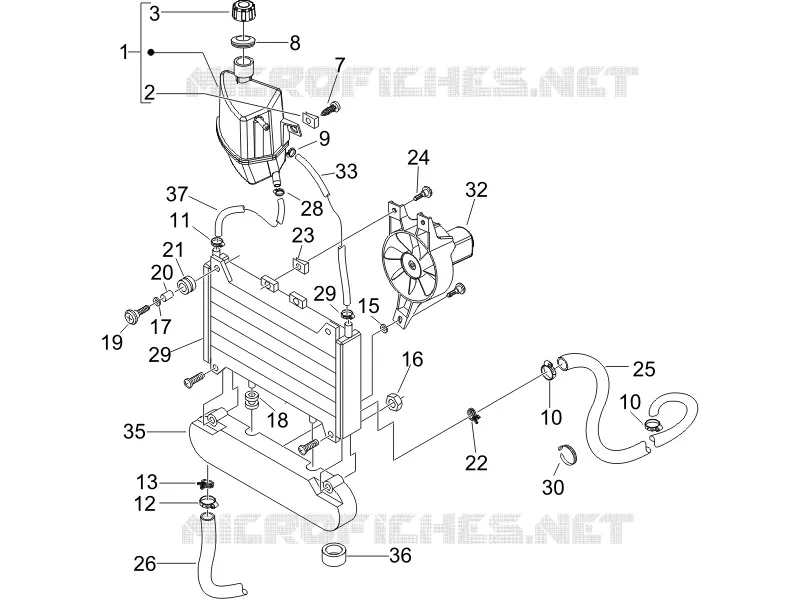

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
