Engine displacement
150
2
Model
FLY
3
Year
0
4
Trim
Fly 4T
5
Parts Catalog
Crankase
6
Parts Diagram
Parts Catalog
Handlebars component parts
by
Cylinder head-valves
Crankase
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Crank-case
CM1280175001
Not Available
1
Crank-case
CM1280175002
Not Available
2
Stud bolt
411295
Not Available
3
screw M6x60
432142
Not Available
4
Gasket ring
82539R
Not Available
5
Silent-block
486081
£9,73 Unit Price incl. VAT
6
Half crankcase gasket
829526
£11,90 Unit Price incl. VAT
7
Plug M12x1,5
411311
Not Available
8
Nozzle
484034
£7,96 Unit Price incl. VAT
9
Pin 6,5x9,5x15
239388
Not Available
10
Screw M5x10
018575
Not Available
11
Plate
828766
Not Available
12
Circlip 25x26.9x1.2
000674
Not Available
13
Locating dowel Ø11x10
478115
Not Available
14
Radial ball bearing 15x42x13
485912
Not Available
15
Radial ball bearing 20x47x14
833701
Not Available
16
Bush Ø8xØ12x8
431860
£1,43 Unit Price incl. VAT
17
Gasket ring
82540R
Not Available

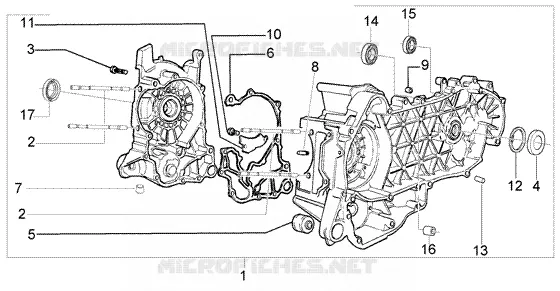

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
