Engine displacement
400
2
Model
BEVERLY
3
Year
2007
4
Trim
Beverly ie E3
5
Parts Catalog
Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Helmet huosing - Undersaddle
Wheel huosing - Mudguard
1
2
3
4
5
6
6
7
9
11
12
13
14
15
17
19
20
21
22
23
24
25
26
27
1
Wheel compartment
621448000P
Not Available
1
Wheel compartment
621448000C
Not Available
2
Spring plate
CM017410
£0,71 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
5
Metric screw M6x20
259830
Not Available
6
Screw M6x16
272836
£1,13 Unit Price incl. VAT
7
Metric screw TBC
259348
£1,04 Unit Price incl. VAT
9
Rear mudguard
624843
Not Available
11
Self locking nut M6
195482
£1,27 Unit Price incl. VAT
12
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
14
Guard
598794
£4,78 Unit Price incl. VAT
15
Mudguard
60171100ND
Not Available
15
FF MUDGUARD
60171100DE
Not Available
15
FF MUDGUARD
60171100RM
Not Available
15
FF MUDGUARD
601711
£281,53 Unit Price incl. VAT
15
Mudguard
60171100F2
Not Available
15
Front mudguard
60171100RE
Not Available
15
FF MUDGUARD BEVERLY FL
6017110087
Not Available
15
FF MUDGUARD BEVERLY FL
60171100AF
Not Available
17
Cover
CM022103
£8,44 Unit Price incl. VAT
18
Cover
CM022104
£8,44 Unit Price incl. VAT
19
Self tapping screw
296141
£1,39 Unit Price incl. VAT
20
Bracket
597795
Not Available
21
Cover
CM022103
£8,44 Unit Price incl. VAT
21
Screw m6x12
031086
Not Available
22
Self tapping screw
296141
£1,39 Unit Price incl. VAT
22
Spring washer 6,4x11x0,5
006966
Not Available
23
Spring plate
CM017409
£1,27 Unit Price incl. VAT
24
Self-tap screw
576189
Not Available
25
Plate
597923
Not Available
26
Sliders support bracket
598642
£12,52 Unit Price incl. VAT
27
Self-tapping screw M5x12
015585
Not Available

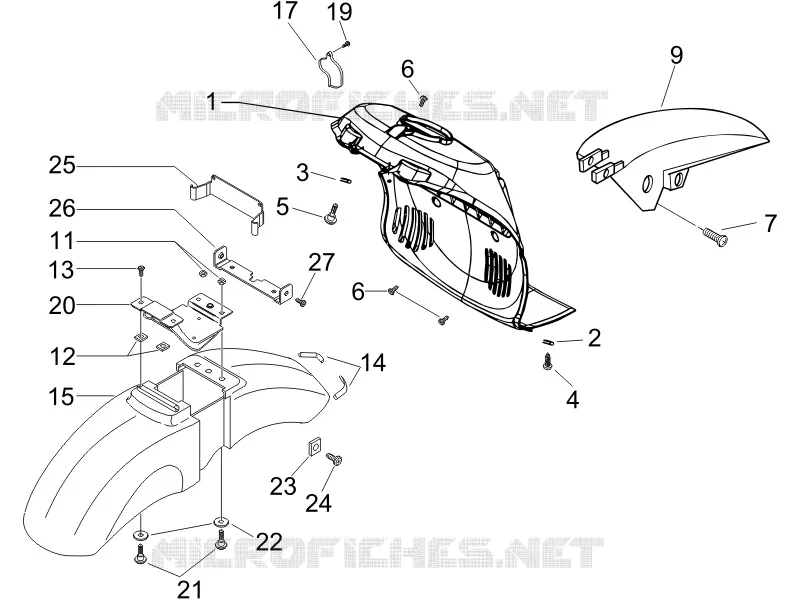

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
