Engine displacement
125
2
Model
HEXAGON
3
Year
2000
4
Trim
HEXAGON LX4
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Oil filter
by
Wheel shaft
Oil pump
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31
32
1
Spacer
478247
Not Available
2
Rod
410226
Not Available
3
Sliding block
436260
Not Available
4
Hex screw M6x18
031089
Not Available
5
Oil pump
436643
Not Available
6
Washer Ø5,3xØ10x0,5
006975
Not Available
7
screw
030251
Not Available
8
Belleville spring Ø6,4xØ20x2
436695
£2,09 Unit Price incl. VAT
9
Screw w/ flange
436788
Not Available
10
Protection
436810
Not Available
11
Screw M5x10
018575
Not Available
12
SUMP
485692
Not Available
13
Screw w/ flange M6x25
414837
Not Available
14
Oil pump gear
287913
£8,52 Unit Price incl. VAT
15
Oil pump chain
434447
£30,94 Unit Price incl. VAT
16
Oil pump control pinion
478149
Not Available
17
Carter-oil pump gasket
436751
£1,86 Unit Price incl. VAT
18
Chain
436246
£44,95 Unit Price incl. VAT
19
Pinion
434442
£42,04 Unit Price incl. VAT
20
Washer
430535
£1,14 Unit Price incl. VAT
21
Gasket ring
434478
Not Available
22
SEAL RING
287963
Not Available
23
Oil pump chain drift
434345
£7,32 Unit Price incl. VAT
24
Timing system cover cpl.
478324
£38,77 Unit Price incl. VAT
25
Screw M5x16
015715
Not Available
26
Oil plug
479996
Not Available
27
Gasket
479985
£1,51 Unit Price incl. VAT
28
O-ring
479986
Not Available
30
Washer 5.3x10x10
006965
Not Available
31
Oil unload plug
436692
£10,55 Unit Price incl. VAT
32
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT

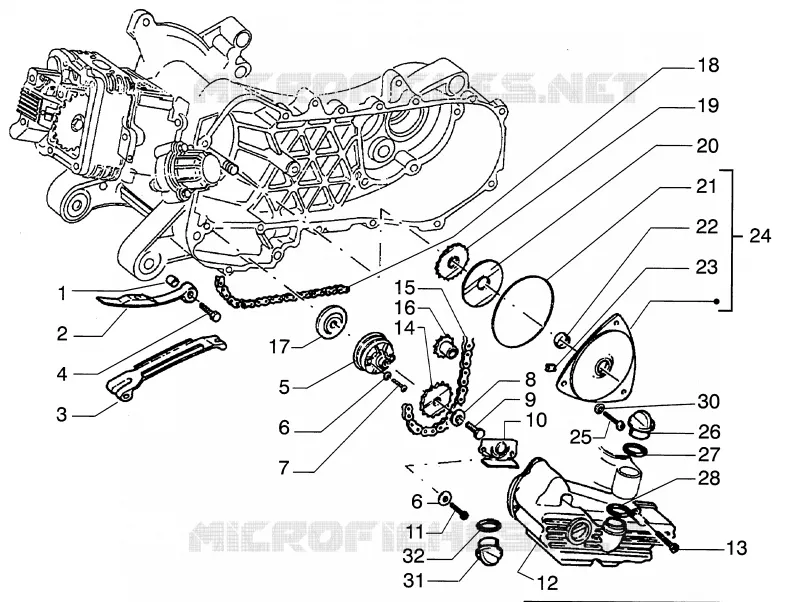

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
