1
Engine displacement
125
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon
5
Parts Catalog
Licence plate holder and case compartment lamp
6
Parts Diagram
Parts Catalog
Tail lamp
by
Locks

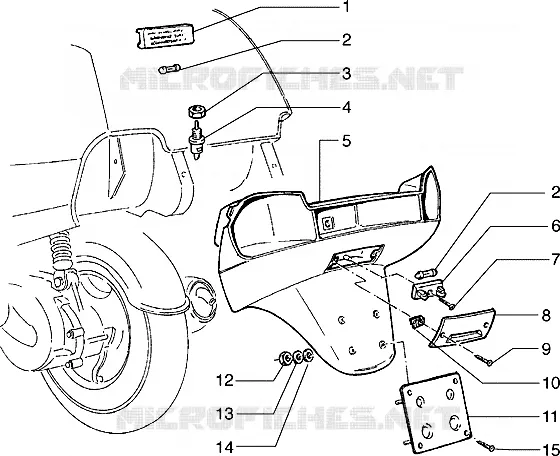

Licence plate holder and case compartment lamp
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Ceiling bowl
293154
£14,35 Unit Price incl. VAT
2
Torpedo shaped lamp 12V-5W
071633
Not Available
3
Nut
196750
£2,36 Unit Price incl. VAT
4
stop Button
214772
Not Available
5
Maintenance
270153000A
Not Available
6
Bracket
290802
Not Available
7
screw
015846
Not Available
8
Covers
270154
Not Available
9
Self tapping screw 4,2x16
015911
Not Available
10
Spring plate
184142
Not Available
11
Number plate holder
253977
Not Available
11
Number plate holder
2539795
£40,09 Unit Price incl. VAT
11
Number plate holder
253976
Not Available
12
Nut M4
020104
Not Available
13
Flat washer 4,2x7,6x0,9
016404
Not Available
14
Washer
013963
Not Available
15
screw M4x14
018591
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
