1
Engine displacement
50
2
Model
EAGLET
3
Year
1999
4
Trim
Eaglet automatic
5
Parts Catalog
Fairings
6
Parts Diagram
Parts Catalog
Frame
by
Fuel tank
Fairings
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
screw M6x25
031092
Not Available
2
Flat washer 6,4x12x1
003056
Not Available
3
Spring washer 6,4x11,8x1
016406
Not Available
4
Bushing
463184
£0,40 Unit Price incl. VAT
5
Front mudguard
8191005
Not Available
5
Front mudguard
8191005095
Not Available
6
Sleeve cover
8188005
Not Available
6
Sleeve cover
8188005095
Not Available
7
Sleeve cover
8187005095
Not Available
7
Sleeve cover
8187005
Not Available
8
screw M5x16
259151
£0,96 Unit Price incl. VAT
9
Plain washer 5,4x10x0,8
003055
Not Available
10
Nut
020105
Not Available
11
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
12
Spring plate
184142
Not Available
13
Lower buffer
463692
£1,57 Unit Price incl. VAT
14
Upper buffer
463693
£1,70 Unit Price incl. VAT
15
Rear mudguard
8192005
Not Available
15
Rear mudguard
8192005095
Not Available
16
Handle
463526
Not Available
17
Handle
463527
Not Available
18
Cover
463529
Not Available
19
Spring plate
463690
Not Available
20
screw
323990
£0,54 Unit Price incl. VAT
21
screw
319005
Not Available
22
Spring plate M6
254485
£1,64 Unit Price incl. VAT
23
Fairing
8190005095
Not Available
23
Fairing
8190005
Not Available
24
Fairing
8189005095
Not Available
24
Fairing
8189005
Not Available
25
Elastic drift
463195
Not Available
26
Splash guard
951613
£32,44 Unit Price incl. VAT
27
Reflector
291081
Not Available
28
Spring plate
181351
£0,98 Unit Price incl. VAT
29
Gasket
4642114
Not Available
30
screw
257404
£1,16 Unit Price incl. VAT
31
Spring plate M6
254485
£1,64 Unit Price incl. VAT
32
Wheel cover
463644
Not Available
33
Support strap
463648
£4,38 Unit Price incl. VAT
34
Plate
463646
£9,36 Unit Price incl. VAT
35
Nut M6
020106
Not Available
36
Washer
179575
£1,33 Unit Price incl. VAT
37
Spring plate
184142
Not Available
38
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
39
Washer
013754
Not Available
40
Two-seat saddle
951516
Not Available
40
Saddle
463530
Not Available
41
screw
030052
Not Available
42
Spacer
965488
Not Available
43
Washer
259365
Not Available
44
Pad
965487
Not Available
45
Hose clamp
463584
£2,63 Unit Price incl. VAT
46
Moulding
463612
Not Available
47
Spring plate
181351
£0,98 Unit Price incl. VAT
48
Reflector
951623
Not Available
49
Spring plate
181351
£0,98 Unit Price incl. VAT

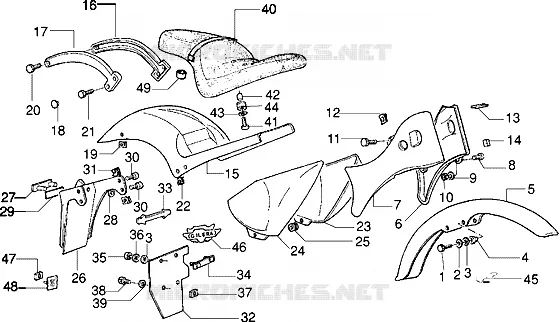

Find the detailed Fairings GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
