1
Engine displacement
125
2
Model
RUNNER
3
Year
2000
4
Trim
Runner 125 FX 2T
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Mvp front fork component parts
by
Model 2002 emblems
Oil pump
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
1
Fairlead
272848
Not Available
2
Nut M6
020106
Not Available
3
Oil pump gear, cpl.
289262
£11,00 Unit Price incl. VAT
4
Belt
431370
£15,30 Unit Price incl. VAT
5
plate
286163
£5,16 Unit Price incl. VAT
6
Guard
483742
Not Available
7
Washer Ø5,3xØ10x0,5
006975
Not Available
8
screw
245816
Not Available
9
Spring clamp
104296
£1,67 Unit Price incl. VAT
10
Self-tapping screw M5x12
015585
Not Available
11
Oil pipe
286165
Not Available
11
Oil outlet pipe
CM101605
£11,22 Unit Price incl. VAT
12
pipe
483633
Not Available
12
Oil inlet pipe
CM101509
£25,38 Unit Price incl. VAT
13
Oil pump
82608R
£94,80 Unit Price incl. VAT
14
Hose clamp
486149
£0,48 Unit Price incl. VAT
15
Hose clamp
288327
£0,85 Unit Price incl. VAT
16
Hose clamp
289309
Not Available
17
Adjuster screw
146197
£1,69 Unit Price incl. VAT
18
screw M5x21
015856
Not Available

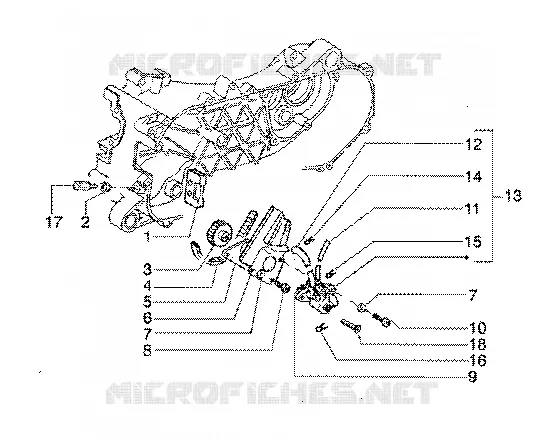

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
