1
Engine displacement
125
2
Model
RUNNER
3
Year
2004
4
Trim
Runner 125 VX 4T
5
Parts Catalog

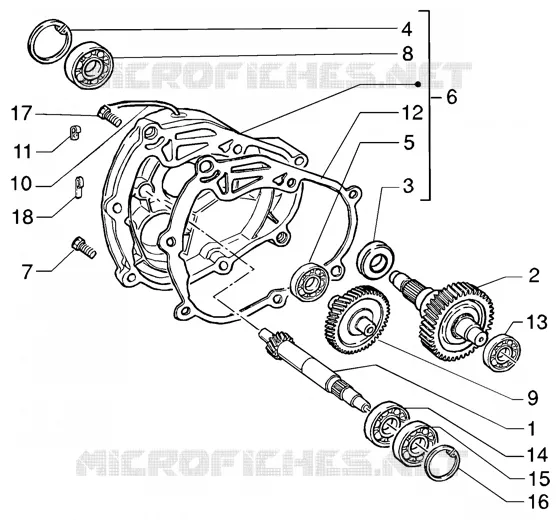

Rear wheel shaft
6
Parts Diagram
Parts Catalog
Cylinder head-valves
by
Front direction indicators
Rear wheel shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Driven pulley shaft
4858795
Not Available
2
Wheel axle
8280075
Not Available
2
Wheel axle
8322555
Not Available
3
Gasket ring
82541R
Not Available
3
Oil seal 38x50x7
829201
Not Available
4
Snap ring
006652
Not Available
4
Circlip
829206
£1,36 Unit Price incl. VAT
5
Radial ball bearing 15x42x13
485912
Not Available
6
Cover
8322495
Not Available
6
Cover
8322515
Not Available
7
Screw w/ flange M8x45
487211
Not Available
8
Radial bearing 25x52x15
478984
Not Available
8
Radial bearing 30x55x13
82659R
Not Available
9
Transmission shaft
4871495
£281,03 Unit Price incl. VAT
10
Breather
840733
£20,15 Unit Price incl. VAT
10
Reduction unit breather pipe assembly
826874
Not Available
10
Reduction unit breather pipe assembly
830671
£21,62 Unit Price incl. VAT
11
Hose clamp
487948
£1,27 Unit Price incl. VAT
12
Gasket
487383
Not Available
13
Radial ball bearing 15x42x13
485912
Not Available
14
Radial ball bearing 20x47x14
833701
Not Available
15
Gasket ring
82539R
Not Available
16
Circlip 25x26.9x1.2
000674
Not Available
17
screw M8x40
825758
Not Available
18
Hose clamp
483638
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
