1
Engine displacement
50
2
Model
RUNNER
3
Year
2002
4
Trim
Runner 50 SP
5
Parts Catalog

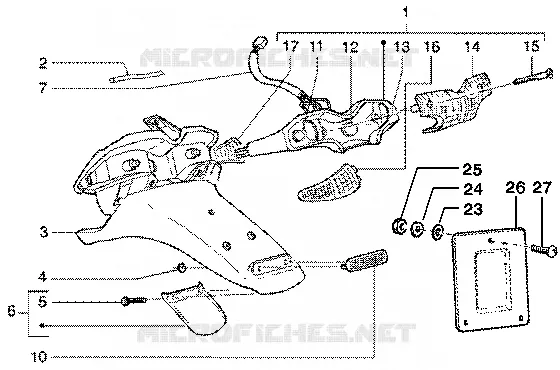

Rear tail lamp
6
Parts Diagram
Parts Catalog
Front direction indicators
by
Electrical devices
Rear tail lamp
1
2
3
4
5
6
7
10
11
12
13
14
15
16
17
23
24
25
26
27
1
Headlight
584015
Not Available
2
Guard
583282
£5,08 Unit Price incl. VAT
3
Guard
298136000P
Not Available
3
Guard
576111000P
Not Available
4
Spring plate
181351
£0,98 Unit Price incl. VAT
5
Self tapping screw
297498
£0,60 Unit Price incl. VAT
6
Splash guard
573925000P
Not Available
6
Splash guard
576171000P
Not Available
7
Cable harness
293565
Not Available
8
Number plate holder plastica
5801244
Not Available
8
Number plate holder
5801254
Not Available
10
Reflector
294519
£9,54 Unit Price incl. VAT
11
Lamp 12V-10W
181746
£2,92 Unit Price incl. VAT
12
Lamp 12V-21/5W
129953
£3,48 Unit Price incl. VAT
13
Lamp 12V-10W
181746
£2,92 Unit Price incl. VAT
14
Glass
584030
Not Available
15
Self tapping screw
584458
Not Available
15
Self-tapping screw with plastic big end
290944
£2,80 Unit Price incl. VAT
16
Glass
584020
£12,37 Unit Price incl. VAT
17
Glass
584021
£12,37 Unit Price incl. VAT
18
Cover
293717
£1,61 Unit Price incl. VAT
19
screw M4x14
018591
Not Available
20
Washer
013754
Not Available
21
Flat washer 4,2x7,6x0,9
016404
Not Available
22
Nut M4
020104
Not Available
23
Flat washer 4,2x12x1
013763
Not Available
24
Flat washer 4,2x12x1
013763
Not Available
25
Nut M4
020104
Not Available
26
Number plate holder (Lamiera)
580124
Not Available
27
screw M4x14
018591
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
