1
Engine displacement
125
2
Model
RUNNER
3
Year
2003
4
Trim
Runner VX
5
Parts Catalog
Front brake caliper - Transmissions
6
Parts Diagram
Parts Catalog
Rear shock absorber
by
Rear brake caliper
Front brake caliper - Transmissions
1
2
3
4
5
6
7
8
9
10
11
12
1
Kit caliper overh.
494685
Not Available
2
Brake pads kit
494628
Not Available
2
KIT PASTICCHE
497072
£25,06 Unit Price incl. VAT
3
Brake caliper
56058R
Not Available
4
Front brake hose
274924
Not Available
5
RONDELLA
127927
£1,04 Unit Price incl. VAT
6
VITE ESP.TE M10X18
265451
£4,94 Unit Price incl. VAT
7
RONDELLA ELASTICA
016408
Not Available
8
RONDELLA PIANA
003058
Not Available
9
VITE
015792
Not Available
10
Fairlead
274350
Not Available
11
Wire
582521
Not Available
12
TRASMISSIONE COMP.CONT
582413
£19,26 Unit Price incl. VAT

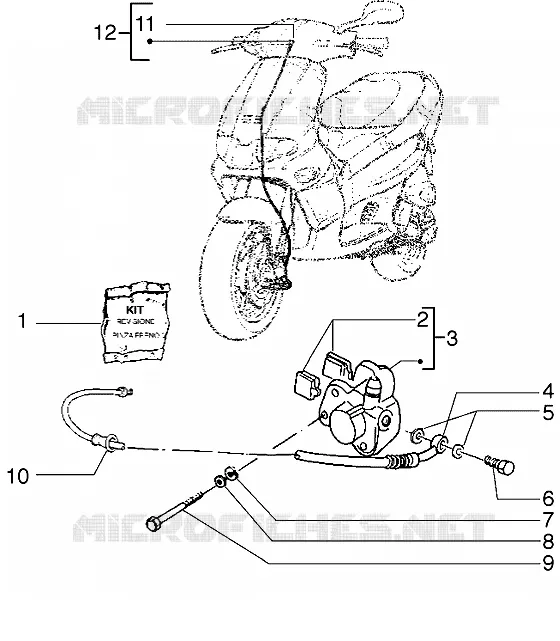

Find the detailed Front brake caliper - Transmissions GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
