Parts Catalog
Cylinder-piston-wrist pin, assy
6

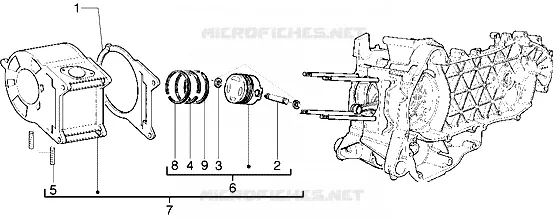

Parts Diagram
Parts Catalog
Handlebars component parts
by
Handlebars component parts
Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
9
1
Cylinder base gasket 0,8 mm
828148
Not Available
1
Cylinder base gasket 0,6 mm
828147
Not Available
1
Cylinder base gasket 0,4 mm
828146
Not Available
2
Piston pin
482335
£13,97 Unit Price incl. VAT
3
Stop ring
239455
£0,62 Unit Price incl. VAT
4
Oil scraper ring d.57x1
434415
Not Available
4
Scraper ring
487999
Not Available
4
Scraper ring
487995
Not Available
4
Scraper ring
488003
£19,99 Unit Price incl. VAT
5
Stud bolt M6
239397
£0,83 Unit Price incl. VAT
6
Piston-wrist pin assy.
8284665002
Not Available
6
Piston-wrist pin assy.
8284665004
Not Available
6
Piston-wrist pin assy.
828464
Not Available
6
Piston-wrist pin assy.
8284665003
Not Available
6
Piston-wrist pin assy.
828465
Not Available
6
Piston-wrist pin assy.
8284665001
Not Available
6
Piston-wrist pin assy.
828463
Not Available
7
Cylinder-piston-wrist pin, ring, assy.
828462
Not Available
8
Gasket ring
487994
Not Available
8
Gasket ring
487998
Not Available
8
Gasket ring
488002
Not Available
8
Compression ring d.57x1
485619
Not Available
9
Oil scraper ring d.57x2,5
485934
Not Available
9
PANEL
4883045
Not Available
9
Oil scraper ring
825029
£51,61 Unit Price incl. VAT
9
Oil scraper ring
487996
£51,61 Unit Price incl. VAT
