1
Engine displacement
180
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon GTX
5
Parts Catalog

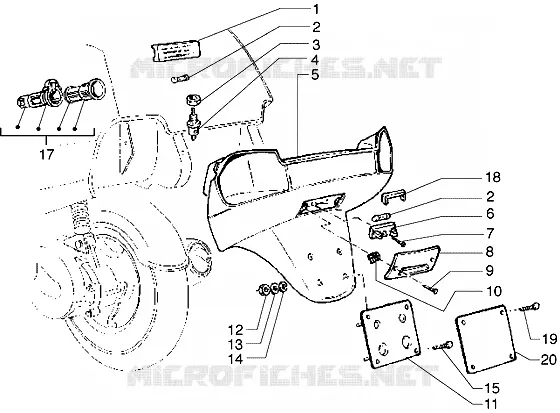

Licence plate holder and case compartment lamp
6
Parts Diagram
Parts Catalog
Tail lamp
by
Battery
Licence plate holder and case compartment lamp
1
2
2
3
4
5
6
8
9
10
11
12
13
14
15
17
18
19
20
1
Ceiling bowl
293154
£14,35 Unit Price incl. VAT
2
Torpedo shaped lamp 12V-5W
071633
Not Available
3
Nut m12x1,5 h=7
568636
£1,49 Unit Price incl. VAT
4
stop Button
214772
Not Available
5
Maintenance
5762110090
Not Available
5
Maintenance
5762110060
Not Available
5
Maintenance
57621100D1
Not Available
5
Maintenance
576211000D
Not Available
5
Maintenance
5762110038
Not Available
6
Bracket
290405
£1,45 Unit Price incl. VAT
8
Covers
2947730090
Not Available
8
Covers
294773000D
Not Available
8
Covers
2947730038
Not Available
8
Covers
29477300D1
Not Available
8
Covers
2947730060
Not Available
9
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
10
Spring plate
184142
Not Available
11
Number plate holder
5801254
Not Available
11
Number plate holder
581371
Not Available
11
Number plate holder
5801304
Not Available
12
Nut M4
020104
Not Available
13
Flat washer 4,2x7,6x0,9
016404
Not Available
14
Washer
013963
Not Available
15
screw M4x14
018591
Not Available
17
LV socket 12V
294770
£26,17 Unit Price incl. VAT
18
Gasket
574970
Not Available
19
screw
121668
£1,00 Unit Price incl. VAT
20
Number plate holder
2910094
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
