1
Engine displacement
150
2
Model
946
3
Year
2015
4
Trim
946 150 4T 3V ABS
5
Parts Catalog

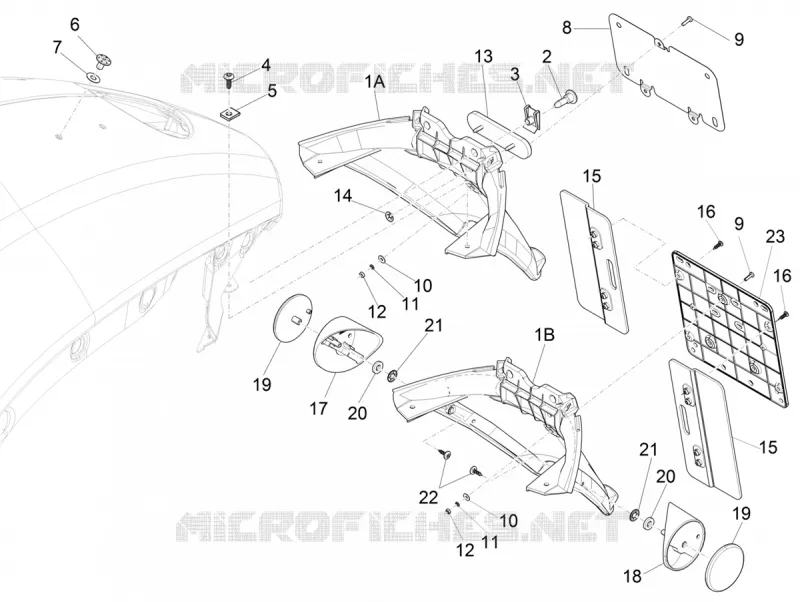

Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Handlebars coverages
Rear cover - Splash guard
1A
1B
2
3
4
5
6
7
8
9
9
10
10
11
11
12
12
13
14
15
15
16
16
17
18
19
19
20
20
21
21
22
23
1A
Rear protection
675569
Not Available
1B
Rear protection
1B004443
£15,76 Unit Price incl. VAT
2
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
5
Spring plate
CM017410
£0,71 Unit Price incl. VAT
6
TBIC screw M6x10
1B000098
£12,46 Unit Price incl. VAT
7
Flat washer
1B000163
£1,63 Unit Price incl. VAT
8
Number plate holder
582691
£15,40 Unit Price incl. VAT
9
Screw M4x12
015996
Not Available
10
Flat washer 4,2x12x1
013763
Not Available
11
Flat washer 4,2x7,6x0,9
016404
Not Available
12
Nut M4
020104
Not Available
13
Rear retroreflector
58233R5
£11,40 Unit Price incl. VAT
14
Spring plate
181351
£0,98 Unit Price incl. VAT
15
Number-plate extension
584877
£5,88 Unit Price incl. VAT
16
Plug screw
268596
£0,62 Unit Price incl. VAT
17
RH rear reflector mount
1B004458
£3,34 Unit Price incl. VAT
18
LH rear reflector mount
1B004457
£3,34 Unit Price incl. VAT
19
Reflector
290315
£12,02 Unit Price incl. VAT
20
Spacer
479882
£1,16 Unit Price incl. VAT
21
Plate
180859
£1,02 Unit Price incl. VAT
22
Self tapping screw
297498
£0,60 Unit Price incl. VAT
23
Number plate holder
584884
£31,69 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
