1
Engine displacement
150
2
Model
946
3
Year
2015
4
Trim
946 150 4T 3V ABS
5
Parts Catalog

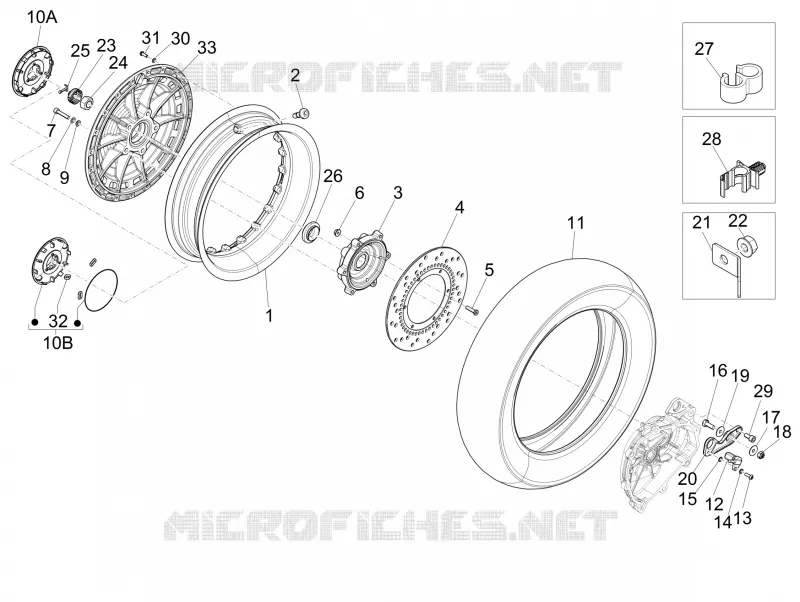

Rear wheel
6
Parts Diagram
Parts Catalog
Handlebars coverages
by
Rear headlamps - Turn signal lamps
Rear wheel
1
2
3
4
5
6
7
8
9
10A
10B
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Rear rim
1C0007205
Not Available
1
Rear rim
1C0001954
£207,20 Unit Price incl. VAT
1
Wheel rim
1C0007204
£194,36 Unit Price incl. VAT
2
Tubeless valve
597679
£6,16 Unit Price incl. VAT
3
Rear wheel hub
598715
£204,36 Unit Price incl. VAT
4
Brake disc
668716
£141,67 Unit Price incl. VAT
5
Special cap screw
668249
£0,83 Unit Price incl. VAT
6
Self locking nut
597565
£1,00 Unit Price incl. VAT
7
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
8
Spring washer
709047
£0,70 Unit Price incl. VAT
9
Flat washer 15x8,4x1,5
003058
Not Available
10A
Rear hub cover
1C001057
£53,62 Unit Price incl. VAT
10A
Rear hub cover
1C002797
£99,07 Unit Price incl. VAT
10B
Rear hub cover
669062
£53,62 Unit Price incl. VAT
11
(Michelin) Tyre 130/70-12"
1C000743
Not Available
12
ABS sensor
1D0001275
Not Available
13
Torx Screw
880285
£1,24 Unit Price incl. VAT
14
Washer
1C000475
£1,85 Unit Price incl. VAT
15
Flat washer
669282
£2,36 Unit Price incl. VAT
16
screw M6x16
031088
Not Available
17
Plain washer 12x6,1x2
976674
£5,14 Unit Price incl. VAT
18
Nut
709116
£1,72 Unit Price incl. VAT
19
Flat washer 6,5x21
268304
£1,36 Unit Price incl. VAT
20
Adaptor
669235
£22,27 Unit Price incl. VAT
21
Sensor bracket
680263
£7,58 Unit Price incl. VAT
22
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
23
Nut hold cap
194423
Not Available
24
Nut M16x13
563728
£2,48 Unit Price incl. VAT
25
Split pin
012789
Not Available
26
Rear wheel spacer
668481
£10,26 Unit Price incl. VAT
27
Hose clamp
667156
£4,82 Unit Price incl. VAT
28
Hose clamp
667643
£4,38 Unit Price incl. VAT
29
screw
239687
£0,37 Unit Price incl. VAT
30
Plain washer 5,4x10x0,8
003055
Not Available
31
Torx Screw
669057
£1,76 Unit Price incl. VAT
32
Gasket ring
1C000410
£6,68 Unit Price incl. VAT
33
Wheel hub
1C000640
£136,85 Unit Price incl. VAT
33
Wheel hub
1C0027916
£136,85 Unit Price incl. VAT
33
Wheel hub
1C00051100HB
£136,85 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
