1
Engine displacement
150
2
Model
946
3
Year
2015
4
Trim
946 150 4T 3V ABS
5
Parts Catalog

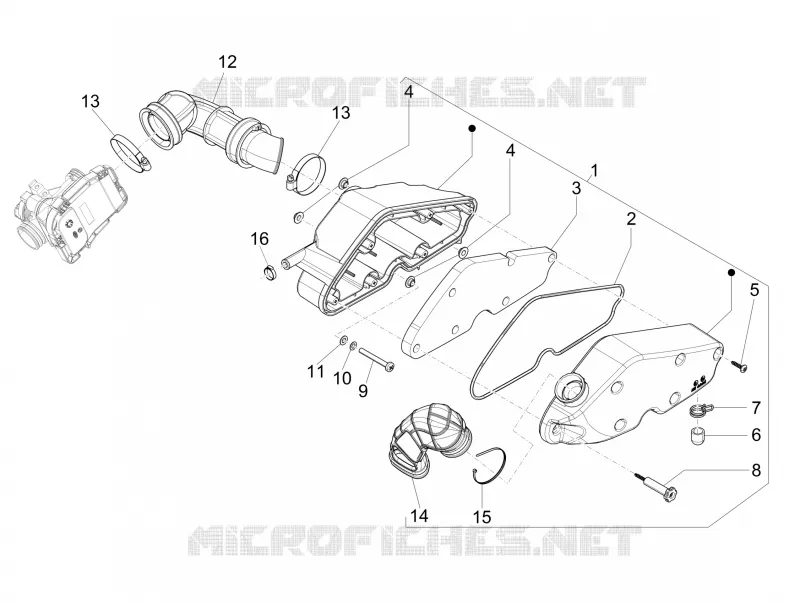

Air filter
6
Parts Diagram
Parts Catalog
Front headlamps - Turn signal lamps
by
Fuel tank
Air filter
13
13
1
2
3
4
4
5
6
7
8
9
10
11
12
16
15
14
1
Complete air cleaner box
1A000616
£317,05 Unit Price incl. VAT
2
Gasket
B018254
£4,37 Unit Price incl. VAT
3
Filter
B018213
Not Available
4
Knurled bushing
830056
£1,27 Unit Price incl. VAT
5
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
6
Cap
827831
£4,75 Unit Price incl. VAT
7
Hose clamp
CM002910
£0,98 Unit Price incl. VAT
8
Knob
B018204
£21,86 Unit Price incl. VAT
9
Special cap screw M6x50
018640
Not Available
10
Notched washer 6,6x11x0
012533
Not Available
11
Flat washer 6,4x12x1
003056
Not Available
12
Air cleaner sleeve
B016432
Not Available
13
Hose clamp
614188
£4,90 Unit Price incl. VAT
14
INTAKE PIPE
1B000344
£15,56 Unit Price incl. VAT
15
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
16
Hose clamp
CM001904
£1,51 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
