Engine displacement
150
2
Model
946
3
Year
2015
4
Trim
946 150 4T 3V ABS
5
Parts Catalog
Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Front wheel
Brakes pipes - Calipers (ABS)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
24
24
24
24
25
26
27
28
29
30
30
30
31
31
32
33
34
34
35
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
1
Front brake caliper
CM068320
£172,16 Unit Price incl. VAT
2
Brake supp. plate pin
666139
£12,74 Unit Price incl. VAT
3
Brake pads couple
668021
£75,14 Unit Price incl. VAT
4
screw
319532
£1,43 Unit Price incl. VAT
5
Spring washer
709047
£0,70 Unit Price incl. VAT
6
Flat washer 15x8,4x1,5
003058
Not Available
7
ABS electro-hydraulic control unit
1C001631
£958,16 Unit Price incl. VAT
8
Bracket with U.P.
1C000175
£57,02 Unit Price incl. VAT
9
Low self-locking nut
709052
£1,13 Unit Price incl. VAT
10
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
11
Washer Ø5,3xØ10x0,5
006975
Not Available
12
Hex screw M6x20
018639
Not Available
13
Washer
179575
£1,33 Unit Price incl. VAT
14
Pad
939278
£4,45 Unit Price incl. VAT
15
Spacer
174969
£1,50 Unit Price incl. VAT
16
Hose clamp
573918
£1,00 Unit Price incl. VAT
17
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
18
Tyre
1C000254
£12,78 Unit Price incl. VAT
19
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
20
Pinza freno Heng Tong
CM074101
Not Available
21
Rear Brake pads couple.
647161
£24,91 Unit Price incl. VAT
22
screw M8x30
015792
Not Available
23
Spring washer
709047
£0,70 Unit Price incl. VAT
24
Gasket
127927
£1,04 Unit Price incl. VAT
25
Special screw
666294
Not Available
26
Brake hydraulic piping (left junction-Pump)
1C000036
£155,83 Unit Price incl. VAT
27
Flexible brake hydraulic hose (ABS-left junction)
1C000033
£120,65 Unit Price incl. VAT
28
Brake hydraulic piping (pin-terminal)
1C000006
£85,21 Unit Price incl. VAT
29
Brake pipe (ABS-Junction unit)
1C000020
£114,85 Unit Price incl. VAT
30
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
31
Screw w/ flange M6x14
874554
£2,32 Unit Price incl. VAT
32
Rear brake hydraulic piping.
1C000168
£143,88 Unit Price incl. VAT
33
Bracket with U.P.
1C000008
£15,64 Unit Price incl. VAT
34
Spring
179013
£5,17 Unit Price incl. VAT
35
Torx Screw
880285
£1,24 Unit Price incl. VAT
36
Washer Ø5,3xØ10x0,5
006975
Not Available
37
Bracket with U.P.
1C000009
£13,00 Unit Price incl. VAT
38
Pad
299071
£1,86 Unit Price incl. VAT
39
Expansion plug
199190
£0,17 Unit Price incl. VAT
40
Wiring clip
1C000046
£7,26 Unit Price incl. VAT
41
Screw w/ flange M6x14
874554
£2,32 Unit Price incl. VAT
42
Spring washer 12x6,4x0,5
006976
Not Available
43
Rear mudguard plate
1B000263
£11,74 Unit Price incl. VAT
44
Self-tapping screw
CM179101
£1,27 Unit Price incl. VAT
45
Non return spring L=12
CM006905
£4,21 Unit Price incl. VAT
46
Hose clamp
845978
£8,57 Unit Price incl. VAT
47
Hex socket screw
873433
£1,32 Unit Price incl. VAT
48
Elastic spring
231590
£0,60 Unit Price incl. VAT
49
Hose clamp
666047
£3,85 Unit Price incl. VAT
50
Screw w/ flange M6x14
874554
£2,32 Unit Price incl. VAT
51
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
52
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
53
Molletta
CM006910
£4,28 Unit Price incl. VAT
54
LH brake pump - ABS unit pipe
1C000035
£192,34 Unit Price incl. VAT
55
Washer Ø5,3xØ10x0,5
006975
Not Available

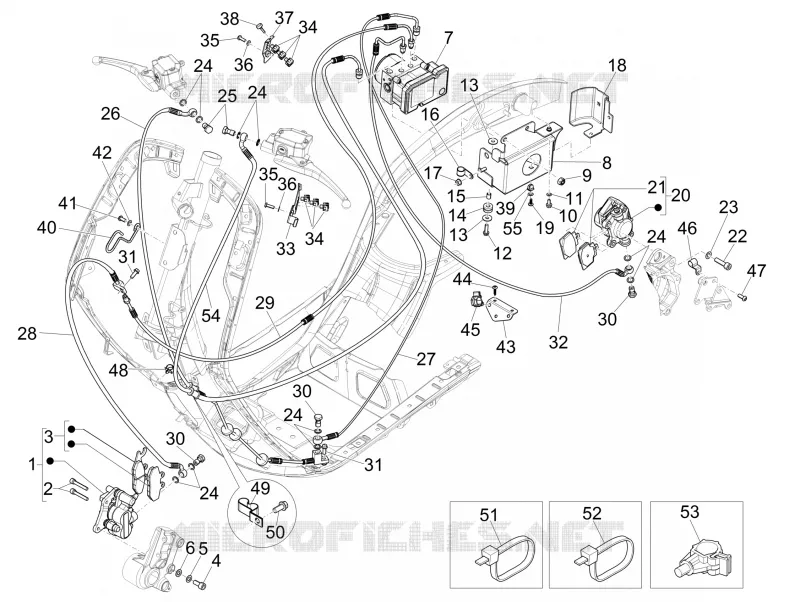

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
